Showa Measuring Instruments HCS Compression Load Cells

Made in Japan
Manufacturer: SHOWA MEASURING INSTRUMENTS Co., Ltd.

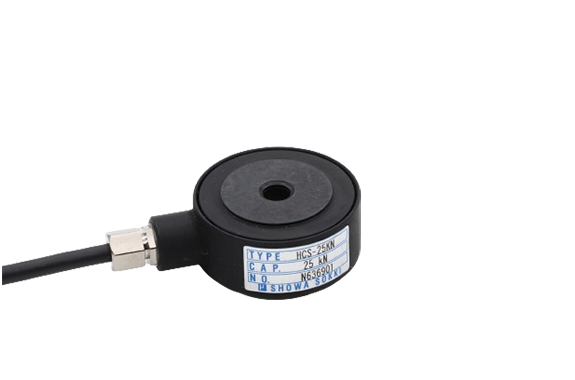

Model: HCS

Features

  • Ultra-small load cell for use in screw looseness meters.
  • Classes of applicable bolts: M6, M8, M10 & M12.
  • Mounting space: 36 mm in dia. and 16 mm in height.
  • Can produce low capacity units upon special requirements.

Appearance Dimensions

HCS

Model and Capacity / Dimension / etc. (unit : mm)

Model Capacity A B C D E Natural frequency Weight
HCS-25KN 25 kN 16 36 24 6.1 0.5 1.3 kHz 65 g
HCS-50KN 50 kN 16 36 24 8.1 0.5 1.8 kHz 70 g
HCS-70KN 70 kN 16 36 24 10.1 0.5 2.0 kHz 75 g
HCS-100KN 100 kN 16 36 24 12.1 0.5 2.3 kHz 75 g

* The weight indicated in this data sheet does not include the weight of cables.
* Items are produced only on order placed.

Specifications

Safe Overload   150 %R.C.
Rated Output   1.5 mV/V±20%(25kN~70kN)
  1.8 mV/V±20%(100kN)
Nonlinearity   3 %R.O.
Hysteresis   3 %R.O.
Repeatability   2 %R.O.
Excitation Voltage   10 V   (or less)
Safe Excitation Voltage   15 V
Input Rsistance   350 Ω
Output Rsistance   350 Ω
Compensated Temp.Range   -10~60 ℃
Safe Temp.Range   -30~80 ℃
Temp.Effect on Zero   0.01 %R.O./℃
Temp.Effect on Output   0.03 %/℃
Cable Φ4mm-4wire shielded cable, length : 5m
Attached connector   PRC03-12A10-7M
