Showa Measuring Instruments TCLA-A Displacement Transducers

Made in Japan
Manufacturer: SHOWA MEASURING INSTRUMENTS Co., Ltd.
Model: TCLA-A

Features

  • Simple reading with the ruler graduations provided.
  • High accuracy because of slide resistor system employed.
  • Using special noiseless contact in the device.
  • Accuracy class: 0.2% RO.

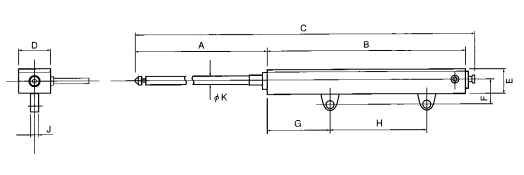

Appearance Dimensions

TCLA-A

Model and Capacity / Dimension / etc. (unit : mm)

Model Capacity A B C D E F G H J K Reaction force(N):start point/end point Weight
TCLA-30A 30 mm 47 76 129 32 27 27 35 – 6 5 1.8/3.5 250 g
TCLA-50A,B 50 mm 67 96 169 32 27 27 40 – 6 5 1.9/3.5 280 g
TCLA-100A,B 100 mm 117 153 276 32 27 27 70 – 6 5 1.9/3.2 330 g
TCLA-200A 200 mm 235 265 505 40 30 28 80 120 6 6 3.5/8.0 630 g
TCLA-300A 300 mm 361 409 809 70 45 47 75 254 10 10 9.5/13.0 2.5 kg

* The weight indicated in the tables of this data sheet does not include the weight of cables.

Specifications

Rated Output 1.5 mV/V±1 % （ASeries）
100×10-6strain / mm（B-Series）
Nonlinearity 0.2 %R.O.
Hysteresis 0.2 %R.O.
Repeatability 0.1 %R.O.
Excitation Voltage 10 V  (or less)
Safe Excitation Voltage 12 V
Input Rsistance 350 Ω
Output Rsistance 350 Ω
Compensated Temp.Range 0～50 ℃
Safe Temp.Range 0～60 ℃
Temp.Effect on Zero 0.02 %R.O./℃
Cable Φ4mm-4wire shielded cable, length : 0.3ｍ
Φ6mm-4wire shielded cable, length : 0.3ｍ
Attached connector Jack / PRC03-32A10-7F
