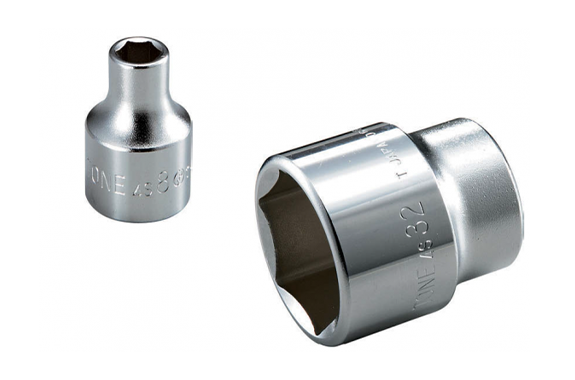

TONE 4S Socket
Product Made in Japan
Manufacturer: TONE
Model: 4S: 4S-08; 4S-09; 4S-10; 4S-11; 4S-12; 4S-13; 4S-14; 4S-15; 4S-16; 4S-17; 4S-18; 4S-19; 4S-20; 4S-21; 4S-22; 4S-23; 4S-24; 4S-25; 4S-26; 4S-27; 4S-28; 4S- 29; 4S-30; 4S-31; 4S-32; 4S-33; 4S-34; 4S-35; 4S-36
Specifications
| Model | Across Flat (mm) | Dimensions (mm) | Packing Quantity | Weight (g) | |||||
|---|---|---|---|---|---|---|---|---|---|
| S | D1 | D2 | L1 | L | d | (Usually) | (Store ornament) | ||
| 4S-08 | 8 | 12.3 | 22.0 | 9 | 35.0 | 7 | 10 | 6 | 50 |
| 4S-09 | 9 | 13.5 | 22.0 | 9 | 35.0 | 7 | 10 | 6 | 50 |
| 4S-10 | 10 | 15.0 | 22.0 | 10 | 35.0 | 8 | 10 | 6 | 50 |
| 4S-11 | 11 | 16.2 | 22.0 | 10 | 35.0 | 9 | 10 | 6 | 55 |
| 4S-12 | 12 | 17.5 | 22.0 | 10 | 35.0 | 10 | 10 | 6 | 55 |
| 4S-13 | 13 | 18.8 | 22.0 | 10 | 35.0 | 11 | 10 | 6 | 60 |
| 4S-14 | 14 | 20.0 | 22.0 | 12 | 35.0 | 11 | 10 | 6 | 60 |
| 4S-15 | 15 | 22.0 | 21.5 | 12 | 35.0 | 11 | 10 | 6 | 60 |
| 4S-16 | 16 | 23.0 | 22.0 | 12 | 36.0 | 14 | 10 | 6 | 70 |
| 4S-17 | 17 | 24.0 | 23.0 | 13 | 37.0 | 14 | 10 | 6 | 70 |
| 4S-18 | 18 | 25.0 | 23.0 | 13 | 37.0 | 15 | 10 | 6 | 75 |
| 4S-19 | 19 | 26.0 | 24.0 | 14 | 38.0 | 16 | 10 | 6 | 80 |
| 4S-20 | 20 | 28.0 | 25.0 | 14 | 38.0 | 16 | 10 | 6 | 95 |
| 4S-21 | 21 | 29.0 | 25.0 | 15 | 39.0 | 18 | 10 | 6 | 100 |
| 4S-22 | 22 | 30.0 | 26.0 | 15 | 40.0 | 18 | 10 | 6 | 110 |
| 4S-23 | 23 | 32.0 | 27.0 | 16 | 41.0 | 20 | 10 | 6 | 130 |
| 4S-24 | 24 | 33.0 | 28.0 | 17 | 41.0 | 20 | 10 | 6 | 145 |
| 4S-25 | 25 | 34.0 | 28.0 | 19 | 43.5 | 22 | 10 | 6 | 150 |
| 4S-26 | 26 | 35.0 | 28.0 | 19 | 43.5 | 22 | 10 | 6 | 160 |
| 4S-27 | 27 | 36.0 | 29.0 | 19 | 43.5 | 22 | 10 | 6 | 175 |
| 4S-28 | 28 | 38.0 | 30.0 | 19 | 43.5 | 22 | 10 | 6 | 185 |
| 4S-29 | 29 | 39.0 | 31.0 | 19 | 43.5 | 22 | 10 | 6 | 210 |
| 4S-30 | 30 | 40.0 | 32.0 | 21 | 47.0 | 25 | 10 | 6 | 210 |
| 4S-31 | 31 | 42.0 | 34.5 | 21 | 47.0 | 25 | 10 | 6 | 235 |
| 4S-32 | 32 | 43.0 | 34.5 | 21 | 47.0 | 25 | 10 | 6 | 260 |
| 4S-33 | 33 | 44.0 | 35.5 | 21 | 47.0 | 25 | 10 | 6 | 260 |
| 4S-34 | 34 | 45.0 | 36.0 | 21 | 47.0 | 25 | 5 | 6 | 266 |
| 4S-35 | 35 | 46.0 | 36.0 | 21 | 47.0 | 25 | 5 | 6 | 271 |
| 4S-36 | 36 | 48.0 | 38.0 | 24 | 52.0 | 30 | 5 | 6 | 320 |
Exterior drawings
