UHT MSD-3 MicroSpindle

Made in Japan
Manufacturer: UHT Corporation
Model: MSD-3

Features

  • High precision spindle to be installed on a machine
  • Easily installed and secured with holder or flange
  • The MSA, MSB, and MSC Micro Spindles includes a flange while the MSD and MSE comes with a removable holder
  • Compact body fitting anywhere
  • Wide range of models
  • Collet size available in 3 mm or 3.175 mm (1/8″)
    (Collets are not interchangeable)
  • ※1 With holder
  • ※2 Without holder

Main Specifications

product name MSD-3
Part number 118
Gross weight 482(g) ※1
Package dimensions 100×220×70(mm) ※2
size sunpou_msde.pdf(PDF) sunpouMSDE.dxf(DXF)

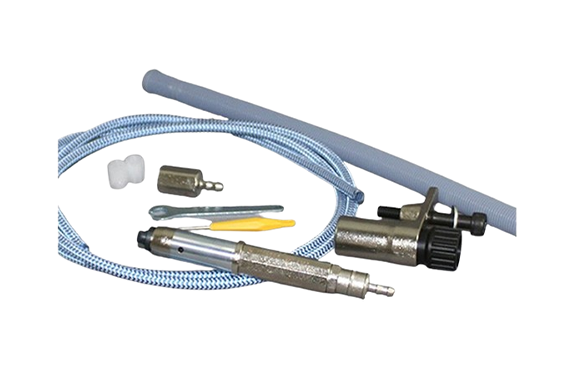

Accessories
  • MSD
  • holder
  • 1.5-m air hose
  • two hose bands
  • Over hose
  • Hose Joint(PT1/4)
  • A set of pins
  • Spanner

Dimensional drawing

MSD-3

Caution

  • Be sure to use a 3-piece set of filter, regulator, and Euler for the airline.
  • Please note that if you use high pressure air above the specified value, the rotation will increase too much and the peripheral speed limit of the grindstone may be exceeded, resulting in damage.
