Manufacturer: Venn Co., Ltd.
Model: KU-3
Features

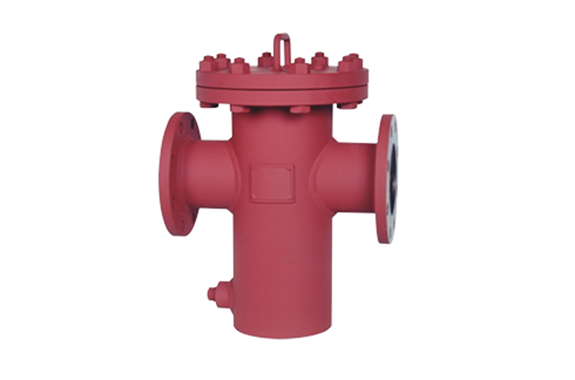

- This is a large-diameter U-shaped strainer made of carbon steel or stainless steel.
- Because the screen removes from the top, liquid does not overflow during disassembly.
Specifications
| Product Symbol | KU3-N |
|---|
| Types of valves | U-shaped |
|---|
| Types | carbon steel |
|---|
| Nominal diameter | 125～400（5～16） |
|---|
| Applicable fluids | Gases and liquids |
|---|
| Fluid temperature | Below 184°C |
|---|
| Application pressure | 1.0MPa or less |
|---|
| End connection | JIS 10K FF Flange |
|---|
| Website | 5, 10, 20, 30, 40, 50, 60 mesh |
|---|
| Allowable differential pressure | Less than 0.1MPa |
|---|
| Painting | Inner surface: anti-rust oil Outer surface: red rust prevention |
|---|
| Material: Body | Below 350A: STPG, 400A: STPY |
|---|
| Material: Net | SUS |
|---|
| Material: Lid | SS |
|---|
