Venn Co.

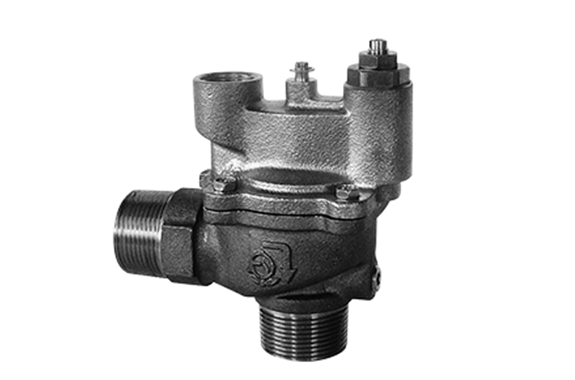

Venn LP-8ARN type constant water level valve (for water, angle type)
Manufacturer: Venn Co., Ltd.
Model: LP-8ARN
Features
- The main body makes of copper and does not rust.
- Since we have made a series of products with a general adjustment mechanism and those for cold regions, it is possible to select according to the situation.
Specifications
| Product code | LP8ARN-F |
|---|---|
| Valve type | Constant water level valve |
| Use | For cold regions |
| Nominal diameter | 20-50 (3/4-2) |
| Applicable fluid | Tap water / industrial water |
| Fluid temperature | 1-60 ℃ |
| Ambient temperature | -20-60 ℃ |
| Applicable pressure | 0.03 to 0.75MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
| End connection | JIS R screw |
| Flow rate adjustment mechanism | With |
| Valve closing time adjustment needle | ─── |
| Drainage mechanism | With |
| Mounting posture | Upright mounting on horizontal piping |
| accessories | Nominal diameter 20 ball tap (with poly ball sand) |
| Material body | CAC406 |
| Material parts | C3604, NBR |
