Japan, Vessel

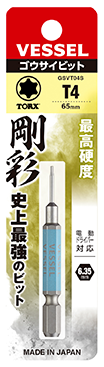

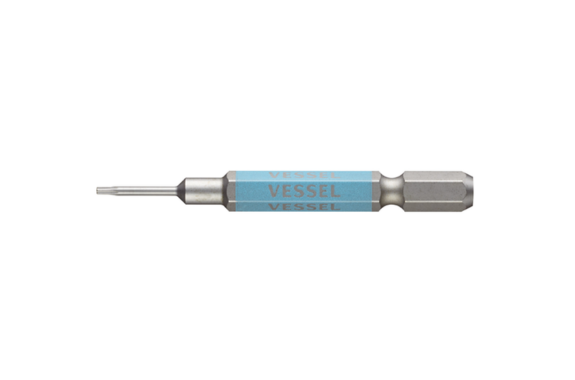

Vessel No.GSVT Single End TORX GO-SAI Bit
Made in Japan
Manufacturer : Vessel
Model : No.GSVT
Ultimate Basic. Ultimate Advanced.
* 10 different color per size for easy distinction of required bit.
* Perfect fitting with various screws thanks to the precision tip-end finishing.
* VESSEL’s unique hardness process applied to bit materials; strong, ductile, and durable.
Product Specifications
| Model | Class | Tip | Tip O/D mm |
Overall Length mm |
Weight g |
Inner C/T | Outer C/T | EDP No. |
| GSVT25SH(T25H x 65) | TX_H | T25H | 4.4 | 65 | 13.8 | 10 | 200 | 485610 |
| GSVT04S(T4 x 65) | TX | T4 | 1.3 | 65 | 11.9 | 10 | 200 | 485603 |
| GSVT05S(T5 x 65) | TX | T5 | 1.37 | 65 | 12 | 10 | 200 | 485604 |
| GSVT06SH(T6H x 65) | TX_H | T6H | 1.65 | 65 | 12 | 10 | 200 | 485605 |
| GSVT08SH(T8H x 65) | TX_H | T8H | 2.3 | 65 | 12.2 | 10 | 200 | 485606 |
| GSVT10SH(T10H x 65) | TX_H | T10H | 2.72 | 65 | 12.5 | 10 | 200 | 485607 |
| GSVT15SH(T15H x 65) | TX_H | T15H | 3.26 | 65 | 12.8 | 10 | 200 | 485608 |
| GSVT20SH(T20H x 65) | TX_H | T20H | 3.84 | 65 | 13.2 | 10 | 200 | 485609 |
| GSVT40SH(T40H x 65) | TX_H | T40H | 6.6 | 65 | 15.4 | 10 | 200 | 485613 |
| GSVT30SH(T30H x 65) | TX_H | T30H | 5.49 | 65 | 14.7 | 10 | 200 | 485612 |
| GSVT27SH(T27H x 65) | TX_H | T27H | 4.96 | 65 | 14.2 | 10 | 200 | 485611 |
