Yamato Electric Braid-coated semi-interflex FSW
Manufacturer: Yamato Electric Industry Co., Ltd
Model: FSW

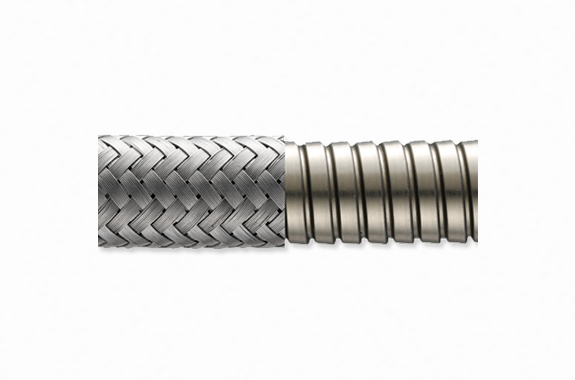

- This flexible conduit uses a semi-interlocked casing made from galvanized steel strip, covered with a braid that protects cables from cutting chips, spatter, and similar hazards.
- Suitable for sections requiring tensile and torsional strength, and can be used in movable parts.
Operating Temperature Range: –50°C to +150°C

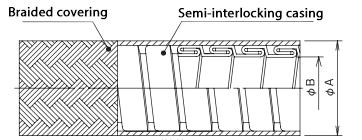

| Mode/Code | Min. Inner Diameter B | Max. Outer Diameter A | Minimum Bending Inner Radius | Weight (kg) / Roll Length (m) | ||
| Fixed | Movable | |||||
| FSW-10 | 10 | 15.5 | 60 | 119 | 12.1/30 | |
| 12 | 12.3 | 18 | 65 | 141 | 13.6/30 | |
| 16 | 15.8 | 21.3 | 75 | 176 | 16.5/30 | |
| 22 | 20.8 | 26.7 | 100 | 211 | 21.4/30 | |
| 28 | 26.4 | 33.4 | 120 | 283 | 27.3/30 | |
| 36 | 35 | 42.2 | 130 | 359 | 22.1/20 | |
| 42 | 40 | 48.3 | 160 | 425 | 23.2/20 | |
| 54 | 51.3 | 60.3 | 190 | 494 | 17.4/10 | |
| 70 | 63.5 | 76.3 | 300 | 691 | 32.3/10 | |
| 82注 | 76.2 | 89 | 320 | 833 | 38.5/10 | |
| Material | Casing: Galvanized steel plate Coating: Soft vinyl chloride (solvent-resistant) | |||||
| Remarks | ||||||
Note: When ordering a connector for model 82, please refer to the ordering example on the MS listing page (P26).
A stainless steel version is also available. (Made to order)
