Yamato Electric Corrugated Vinyl-Coated Flexible Conduit FAG

Manufacturer: Yamato Electric Industry Co., Ltd
Model: FAG

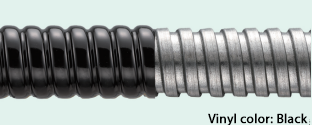

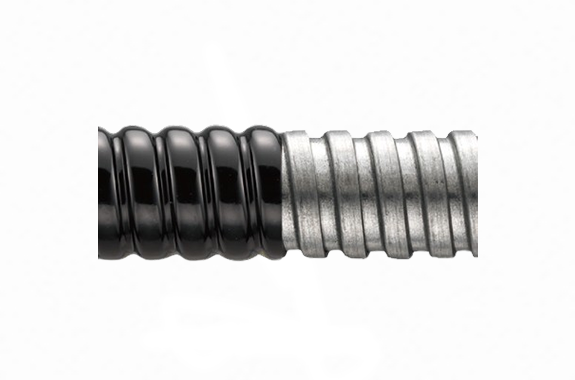

Corrugated Vinyl-Coated Flexible Conduit FAG

The manufacturer forms this flexible conduit by spirally winding galvanized steel tape and coating it with oil-resistant vinyl in a corrugated shape.
It is lightweight, has a small bending radius, and offers excellent flexibility and workability.
Engineers mainly use it for fixed piping, but they can also apply it to movable piping with gentle motion, which makes it highly versatile across various applications.
When connected with a flexible conduit connector, it ensures liquid-tight protection equivalent to IP67 (see compatibility table on P12).

Operating Temperature Range: -20°C to +65°C (The cold resistance temperature is based on test data conforming to JIS K 6723 and is a reference value for fixed use.)

Unit: mm

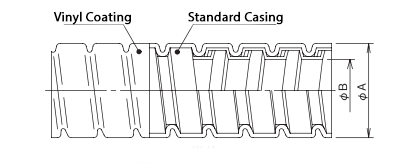

Model/Code	Min. Inner Diameter B	Max. Outer Diameter A	Minimum Bending Inner Radius		Weight (kg) / Roll Length (m)
Model/Code	Min. Inner Diameter B	Max. Outer Diameter A	Fixed	Movable	Weight (kg) / Roll Length (m)
FAG-10	10	15.5	35	77	7.7/50
12	12.3	18	40	91	9.7/50
16	15.8	21.3	45	114	11.1/50
22	20.8	26.7	55	136	9.3/30
28	26.4	33.4	70	183	12.2/30
36	35	42.2	85	228	11/20
42	40	48.3	105	275	13.4/20
54	51.3	60.3	120	319	9.6/10
70	63.5	76.3	250	461	16/10
82	76.2	89	300	555	21/10
Material	Casing: Galvanized steel plate Coating: Soft polyvinyl chloride (PVC)
Remarks

Note: When ordering a connector for model 82, please refer to the ordering example on the MS listing page (P26). A stainless steel version is also available (made to order).

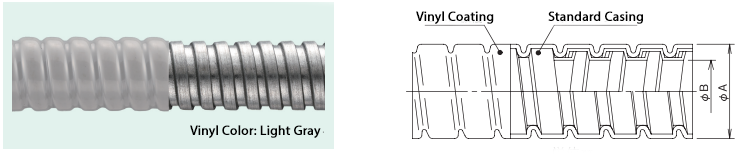

Corrugated Vinyl-Coated Flexible Conduit (Light Gray) FAG-LG

Same structure as FAG, but with a light gray vinyl coating. FAG Unit: mm

Model/Code	Min. Inner Diameter B	Max. Outer Diameter A	Minimum Bending Inner Radius		Weight (kg) / Roll Length (m)
Model/Code	Min. Inner Diameter B	Max. Outer Diameter A	Fixed	Movable	Weight (kg) / Roll Length (m)
FAG-10LG	10	15.5	35	77	4.6/30
12 LG	12.3	18	40	91	5.8/30
16 LG	15.8	21.3	45	114	6.7/30
22 LG	20.8	26.7	55	136	6.2/20
28 LG	26.4	33.4	70	183	8.1/20
36 LG	35	42.2	85	228	8.3/15
42 LG	40	48.3	105	275	10.1/15
54 LG	51.3	60.3	120	319	9.6/10
Material	Casing: Galvanized steel plate Coating: Soft polyvinyl chloride (PVC)
Remarks
