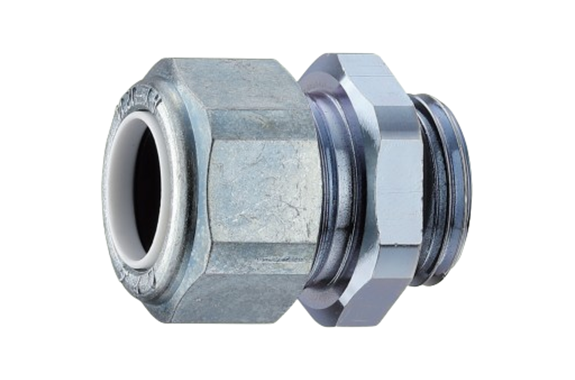

Yamato Electric LAYS Series Cable Connector for Limit Switches
Manufacturer: Yamato Electric Co., Ltd.
Model: LAYS Series

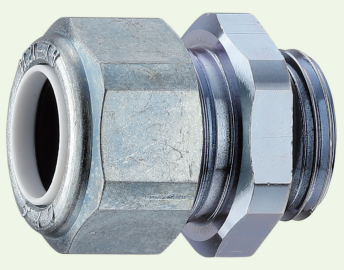

Cable Connector for Limit Switches LAYS
- This is a connector used to connect limit switches and cables.
- It comes with an O-ring.
- LAYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

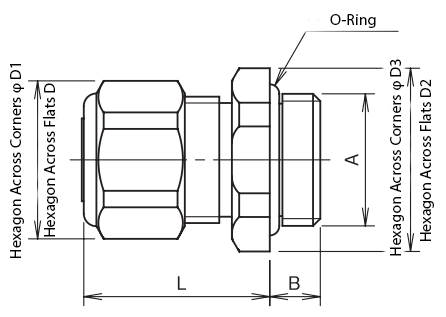

Unit: mm
| Nominal Size | Code | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Accommodated Cable Outer Dia | Armor Screw A | B | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | Cap Color | Mass (g) | Qty/Box | |||
| Conduit Thread | Pipe Parallel Thread | ||||||||||||
| LAYS- 5 〜 8 | φ 4 〜 φ 8.3 | CTG 16 | G 1/2 | 8 | 23 | 25 | 27 | 29 | 29 | Grey | 48 | 25 | |
| LAYS- 9 〜 11 | φ 7 〜 φ 11.3 | 28 | Milky White | 47 | |||||||||
| LAYS- 12 〜 14 | φ 10 〜 φ 14.5 | 26 | 28 | 27 | Milky White | 60 | |||||||
| Material | Body: 5〜8.9〜11 – Zinc Alloy Die-Cas, 12〜14 – Brass Rod | ||||||||||||
| Remarks | |||||||||||||
Please inquire regarding the nominal size (or designation) of options with springs.
