Yamato Electric MAPL/ MHPL Series Connector with Positioning Mechanism
Manufacturer: Yamato Electric Co., Ltd.
Model: MAPL/ MHPL Series
Connector with Positioning Mechanism MAPL/ MHPL
- This is a connector that allows positioning in the flexible direction even after the main body is fixed to control panels or tapped holes.
- Liquid and dustproof structure: The flexible connector connection part has a protection rating of IP67 (see the compatible connector chart for P12 flexible connectors).

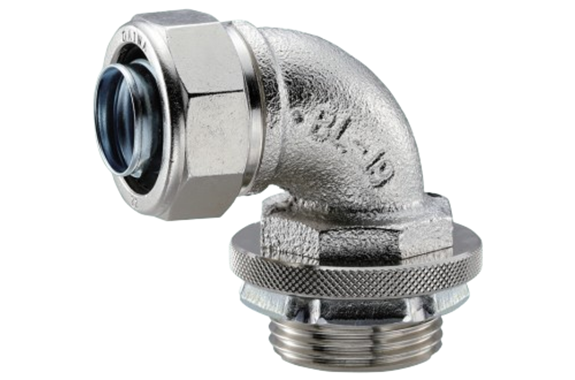

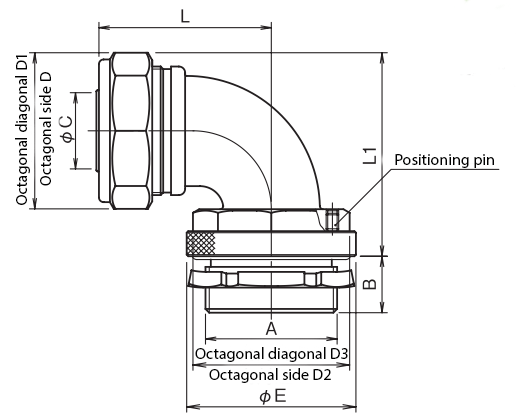

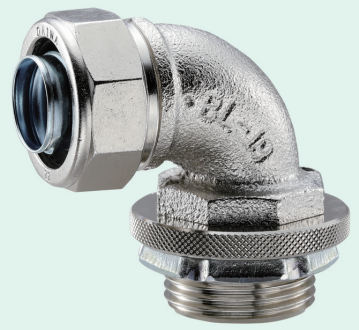

90° Angle Connector MAPL
Unit: mm
| Symbol | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Thick Copper Thread A | B | C | D | D1 | D2 | D3 | E | Length Before Tightening | Weight (g) | Quantity per Box (pcs) | |||||
| Electric Cable Thread Designation | Pipe Flat Thread Designation | Threaded Hole Diameter | L | L1 | ||||||||||||
| MAPL-16-28 | CTG 28 | G1 | 34 | 16 | 14 | 32 | 34.5 | 35 | 38 | 47 | 46 | 49.5 | 278 | 5 | ||
| MAPL-22-28 | CTG 28 | G1 | 34 | 16 | 18.9 | 36 | 39 | 35 | 38 | 47 | 46 | 51.5 | 287 | 5 | ||
| MAPL-28-36 | CTG 36 | G1 1/4 | 42 | 18 | 24.5 | 46 | 50 | 46 | 50 | 54 | 54.5 | 65 | 475 | 4 | ||
| Material | Main body: Black Iron Steel | |||||||||||||||
| Remarks: | ||||||||||||||||

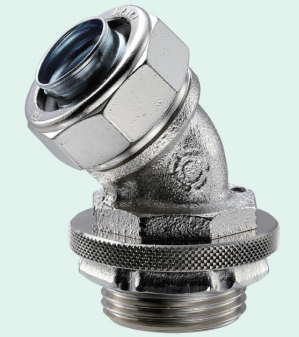

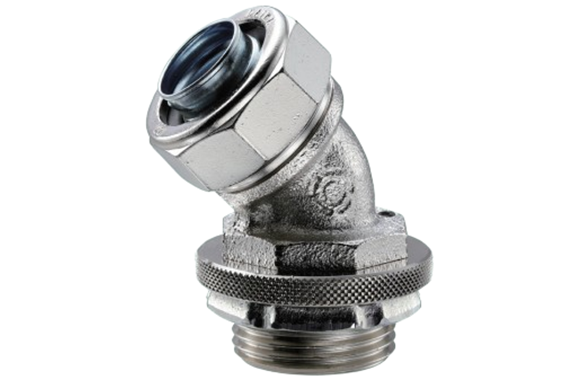

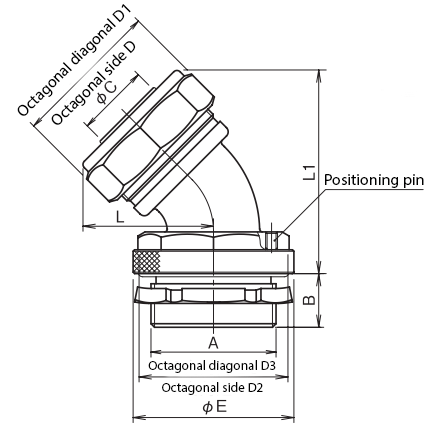

45° Angle Connector MHPL
Unit: mm
| Symbol | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Thick Copper Thread A | B | C | D | D1 | D2 | D3 | E | Length Before Tightening | Weight (g) | Quantity per Box (pcs) | |||||
| Electric Cable Thread Designation | Pipe Flat Thread Designation | Threaded Hole Diameter | L | L1 | ||||||||||||
| MHPL-16-28 | CTG 28 | G1 | 34 | 16 | 14 | 32 | 34.5 | 36 | 39 | 47 | 35 | 54.5 | 247 | 6 | ||
| MHPL-22-28 | CTG 28 | G1 | 34 | 16 | 18.9 | 36 | 39 | 36 | 39 | 47 | 36 | 55 | 257 | 6 | ||
| MHPL-28-36 | CTG 36 | G1 1/4 | 42 | 18 | 24.5 | 46 | 50 | 47 | 51 | 54 | 44 | 68.5 | 387 | 4 | ||
| Material | Main body: Black Iron Steel | |||||||||||||||
| Remarks: | ||||||||||||||||
