Yamato Electric MSE/ MAE Series Vinyl/Blade Sheath (Double Sheath) Flexible Conduit FAE Exclusive Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MSE/ MAE Series
Vinyl/Blade Sheath (Double Sheath) Flexible Conduit FAE Exclusive Connector MSE MAE
- This is a connector exclusive for EMI-shielding Flexible Conduit FAE (P24).
- Other flexible conduit connectors can also be made suitable for FAE. (Please inquire for details)
- Waterproof/Dustproof Construction: IP67 Protection Rating (Refer to the P12 Flexible Conduit and Connector Compatibility Table)

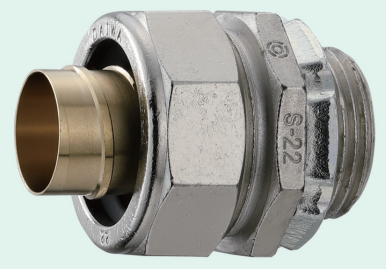

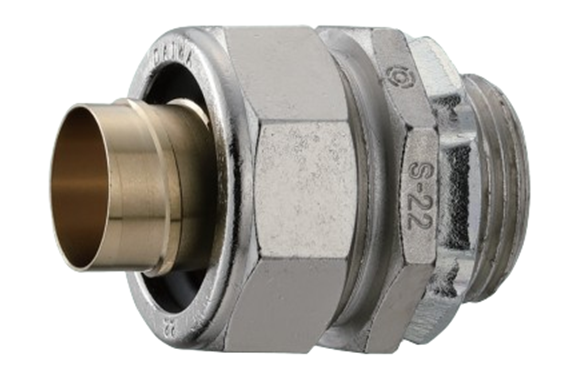

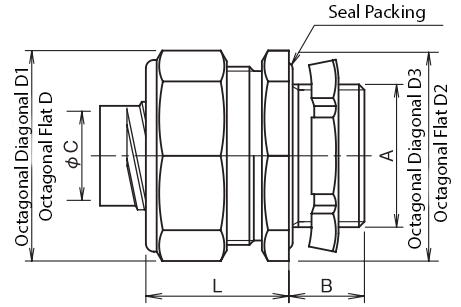

Straight Connector MSE
Unit: mm
| Symbol | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Name | Thick Wall Thread A | B | Inner Diameter C | Clamping Length L | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | |||||
| Conduit Thread Name | Piping Thread Name | Recommended Mounting Hole | ||||||||||||
| MSE-12-16 | CTG 16 | G 1/2 | 21 | 14 | 9.8 | 23 | 27 | 29 | 27 | 29 | 68 | |||
| MSE-16-16 | CTG 16 | G 1/2 | 21 | 14 | 13.3 | 26.5 | 32 | 34.5 | 32 | 34.5 | 92 | |||
| MSE-16-22 | CTG 22 | G 3/4 | 27 | 14 | 13.3 | 26.5 | 32 | 34.5 | 36 | 39 | 112 | |||
| MSE-22-22 | CTG 22 | G 3/4 | 27 | 14 | 17.5 | 26.5 | 36 | 39 | 36 | 39 | 108 | |||
| MSE-28-28 | CTG 28 | G 1 | 34 | 16 | 22.7 | 29 | 46 | 50 | 46 | 50 | 184 | |||
| MSE-36-36 | CTG 36 | G 1 1/4 | 42 | 18 | 31.7 | 30.5 | 54 | 58.5 | 54 | 58.5 | 224 | |||
| Materials | Body: Zinc Alloy Die Cast | |||||||||||||
| Remarks | ||||||||||||||

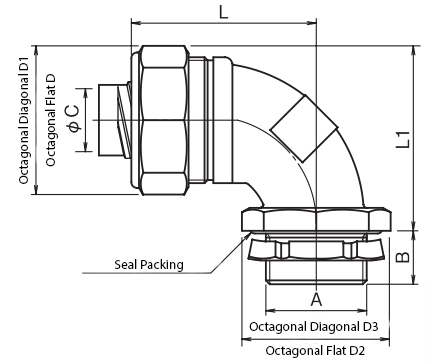

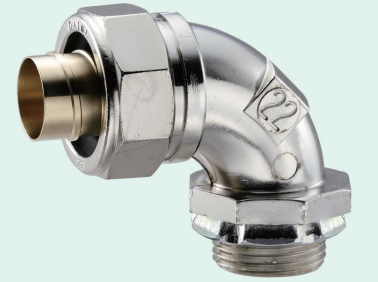

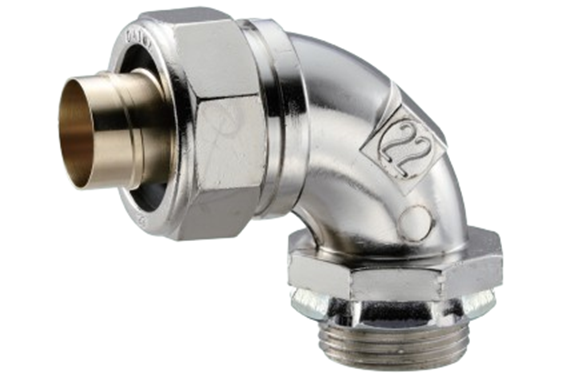

90° Angle Connector MAE
Unit: mm
| Symbol | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model Name | Thick Wall Thread A | B | Inner Diameter C | Clamping Length L | L1 | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | ||||
| Conduit Thread Name | Piping Thread Name | Recommended Mounting Hole | ||||||||||||
| MAE-12-16 | CTG 16 | G 1/2 | 21 | 14 | 9.8 | 39.5 | 37 | 27 | 29 | 27 | 29 | 92 | ||
| MAE-16-16 | CTG 16 | G 1/2 | 21 | 14 | 13.3 | 42.5 | 40 | 32 | 34.5 | 27 | 29 | 124 | ||
| MAE-16-22 | CTG 22 | G 3/4 | 27 | 14 | 13.3 | 42 | 42 | 32 | 34.5 | 36 | 39 | 152 | ||
| MAE-22-22 | CTG 22 | G 3/4 | 27 | 14 | 17.5 | 48 | 49 | 36 | 39 | 36 | 39 | 174 | ||
| MAE-28-28 | CTG 28 | G 1 | 34 | 16 | 22.7 | 54.5 | 57 | 46 | 50 | 46 | 50 | 292 | ||
| MAE-36-36 | CTG 36 | G 1 1/4 | 42 | 18 | 31.7 | 59.5 | 65 | 54 | 58.5 | 54 | 58.5 | 396 | ||
| Materials | Body: Zinc Alloy Die Cast | |||||||||||||
| Remarks | ||||||||||||||
