Japan, Yoshitake

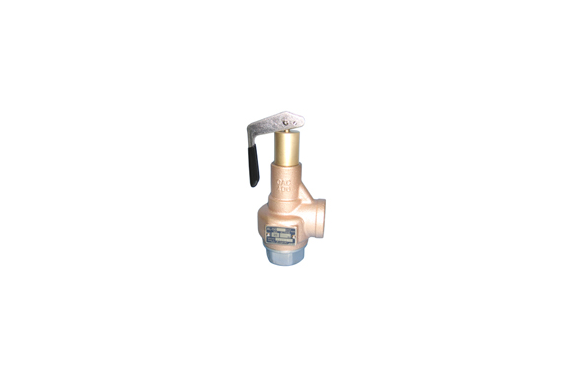

YOSHITAKE AL-150L Safety and Relief Valve
Made in Japan
Manufacturer: Yoshitake
Model: AL-150L
- Blow-off test can be executed manually
- Small and compact lever type
- Superior durability of stainless steel trim
Specifications
| Features | Bronze, screwed, with lever | |
|---|---|---|
| Type | Safety relief valve | |
| Specifications | Product type | Safety valve/Relief valve |
| Nominal size | 15A (1/2″) – 50A (2″) | |
| Application | Steam, air | |
| End connection | JIS Rc | |
| Working pressure | 0.05 – 1 MPa | |
| Max. temperature | 220 degree(C) | |
| Material | Body | Bronze |
| Spring case | Bronze | |
| Valve and valve seat | Stainless steel (SCS14A) | |
Dimensions and Weights
| Size | L (mm) | H1 (mm) | Weight (kg) |
|---|---|---|---|
| 15A(1/2) | 34 | 40 | 0.8 |
| 20A(3/4) | 38 | 43 | 0.9 |
| 25A(1) | 43 | 51.5 | 1.2 |
| 32A(1 1/4) | 50 | 61.5 | 1.9 |
| 40A(1 1/2) | 60 | 60 | 2.9 |
| 50A(2) | 75 | 76 | 4.8 |
About flow rate
Selection data：
Dimensional drawing
