AROMANIKKI LF-B1 type Non-pressure Vertical Conduits
Manufacturer: AROMANIKKI Co., Ltd.
Model: LF-B1
Features
◎Cross-spring type: The leaf springs are arranged in a cross shape, so there is almost no movement in the front, back, left, or right directions, and it can only move up and down, and there is almost no displacement of the pivot point.

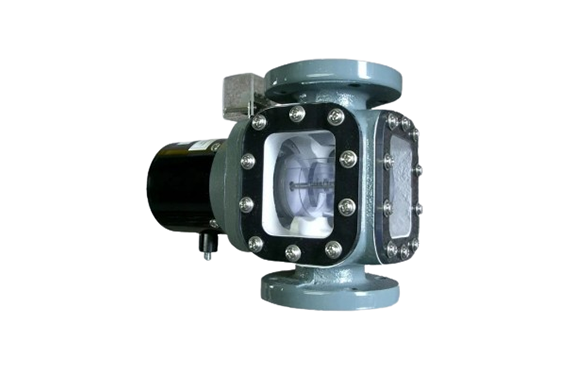

◎Easy internal inspection: It has wide transparent windows on three sides, so the condition of the liquid flow can be checked at a glance, and the switch part is also covered with a transparent cover, so inspection can be done easily.
| Main material | Body: FC200 Internal mechanism: C3604 View window, bucket: Transparent PVC |
|---|---|
| Connection port diameter | 15A, 20A, 25A, 32A, 40A, 50A (However, the main body is common to JIS 5K 40A FF flange) |
| Connection method | The JIS5K 40A FF flange attached to the main unit is welded to the piping. |
| Operating flow rate | 0.1–10.0 l/min |
| Maximum flow rate for regular use | 12.0 l/min (water head 10cm), 16.0 l/min (water head 30cm) |
| Body pressure resistance | 0.2 MPa |
| Temperature range | +5℃ to +60℃ |
| Recommended tightening torque for terminal screws | 0.9 N･m |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC60W AC200V 0.3A or less, AC100V 0.6A or less, DC200V 0.3A or less, DC100V 0.6A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | Munsell 7.5BG4/1.5 baked finish Painting is available upon request. |

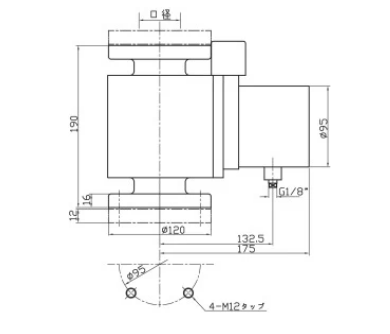

Dashed line: Welding flange
Weight: Main body approx. 9.0 kg;
Welding flange, bolts, and gaskets approx. 2.0-2.5 kg (varies depending on diameter).
