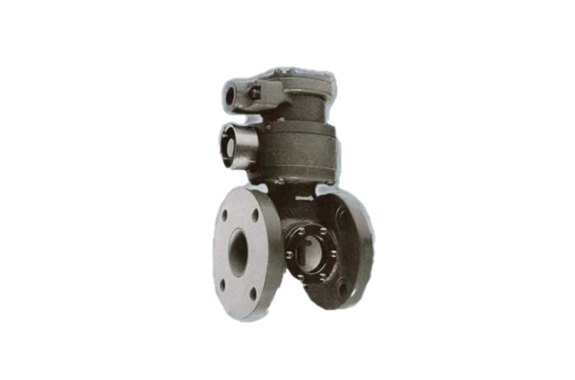

AROMANIKKI SP-REX Pressurized Pipelines
Manufacturer: AROMANIKKI Co., Ltd.
Model: SP-REX
Features
[Applicable Hazardous Atmospheres]
Compared to other explosion-proof structures, this pressure-resistant explosion-proof structure is more reliable and can be applied to most gases, including hydrogen and acetylene.
[Type Approval Number]
TC13992
*The cable entry point uses a pressure-resistant gasket system, but a conduit system SP-REXC type is also available.
*IEC = International Electrotechnical Commission
| Type Approval Number | No. TC13992 |
|---|---|
| Main material | Body (pipe connection section): FC200 (15-100A) Body (pipe connection section): STPG (125A and above) Body (pipe connection section): SCS13, SCS14, SCS16, etc. (15-65A) Body (pipe connection section): SUS304, SUS316, SUS316L, etc. (80A and above) Body (internal mechanism terminal box section): FC200 Internal mechanism: SUS304, SUS316, SUS316L, etc. |
| Connection port diameter | 15-800A |
| Cable connection method | Pressure-resistant packing type (SP-REX type): Connection thread: G3/4 or G1/2, etc. Conduit type (SP-REXC type): G3/4 or G1/2, etc. |
| Flange standards | In addition to JIS10K (standard type), we also manufacture JIS5K, JIS20K, JIS30K, ANSI150lb, JPI150lb, and other types. |
| Decrease flow rate | We can manufacture machines with a flow rate of 5.0 l/min or less depending on the conditions, so please contact us for details . |
| Maximum pressure | 0.98MPa (standard type) |
| Temperature range | -10℃ to +60℃ (standard type) . +90℃ and +100℃ models are also available. |
| Recommended tightening torque for terminal screws | 1.4–2.0 N·m |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC30W AC200V 0.3A or less, AC100V 0.6A or less , DC200V 0.15A or less, DC100V 0.3A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | [Body (piping connection section)] Body material FC200: Munsell 7.5BG4/1.5 baked finish (standard type) Body material SCS: Unpainted [Body (internal mechanism terminal box section)] Munsell 7.5BG4/1.5 baked finish (standard type) Painting is available upon request. |

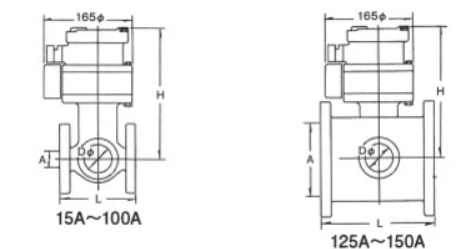

| Nominal bore diameter (A) | Between surfaces (Lmm) | Height (Hmm) | Window (Dmm) | Weight (kg) |
|---|---|---|---|---|
| 15 | 140 | 242 | 50 | 12.7 |
| 20 | 140 | 242 | 50 | 13.3 |
| 25 | 140 | 242 | 50 | 13.7 |
| 32 | 140 | 242 | 50 | 14.5 |
| 40 | 140 | 242 | 50 | 14.7 |
| 50 | 160 | 242 | 50 | 15.7 |
| 65 | 160 | 242 | 50 | 16.6 |
| 80 | 200 | 242 | 50 | 20.2 |
| 100 | 200 | 242 | 50 | 25.0 |
| 125 | 300 | 242 | 50 | 33.5 |
| 150 | 300 | 242 | 50 | 37.7 |
*We can also manufacture pipes with a nominal diameter of 200A or larger. Please contact us for details.
