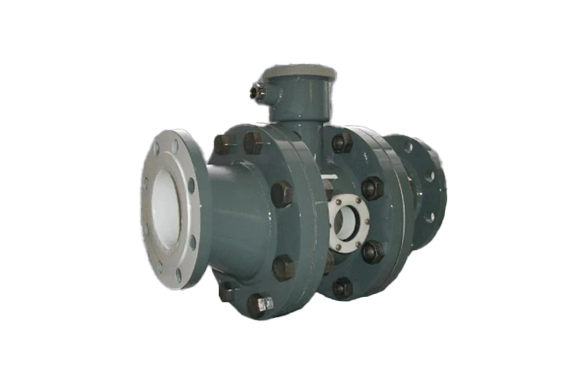

AROMANIKKI SP-RD Type Pressurized Pipelines
Manufacturer: AROMANIKKI Co., Ltd.
Model: SP-RD
Features
Thanks to its internal damping mechanism, it can typically handle large flow rates,
and there is virtually no pressure loss.
| Main material | Body: STPG, SUS304, SUS316, SUS316L, etc. Internal mechanism: C3604, SCS13, SCS14, SCS16, etc. |
|---|---|
| Connection port diameter | 65-200A |
| Flange standards | In addition to JIS10K (standard type), we also manufacture JIS5K, JIS20K, JIS30K, ANSI150lb, JPI150lb, and other types. |
| Maximum pressure | 0.98MPa (standard type) |
| Temperature range | -10℃ to +60℃ (standard type) . +90℃ and +100℃ models are also available. |
| Recommended tightening torque for terminal screws | 0.9 N･m |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC60W AC200V 0.3A or less, AC100V 0.6A or less, DC200V 0.3A or less, DC100V 0.6A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | Munsell 7.5BG4/1.5 baked finish (standard type) . Additional painting is available upon request. |
