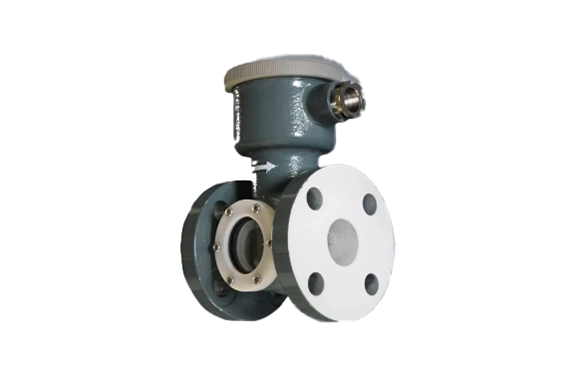

AROMANIKKI SP-R Pressurized Pipelines
Manufacturer: AROMANIKKI Co., Ltd.
Model: SP-R
Features
Reliable Operation : Flow detection is performed solely by the deflection of a leaf spring, and there are no frictional sliding parts such as bearings, ensuring reliable operation without being affected by limescale or debris.
This proximity switch system employs a combination of a highly sensitive reed switch and a permanent magnet, resulting in responsive operation while also providing appropriate hysteresis characteristics to prevent chattering.
The operational characteristics graph in the setting accuracy test report clearly shows the relationship between the scale and operation, allowing you to accurately set the volume in liters/min by adjusting the scale on the main unit.
Easy adjustment : The adjustment screw allows for easy adjustment of the operating flow rate without any problems, even while the liquid is flowing.
Corrosion-resistant and durable: The large leaf
Easy internal inspection: Equipped with a transparent window that is sufficient for use as a flow site, it has good lighting and makes it easy to check the interior.
Note: When using in hazardous locations, please use the pressure-resistant explosion-proof flow relay SP-RX type (d2G4) or SP-REX type (ExdⅡCT4).
Options

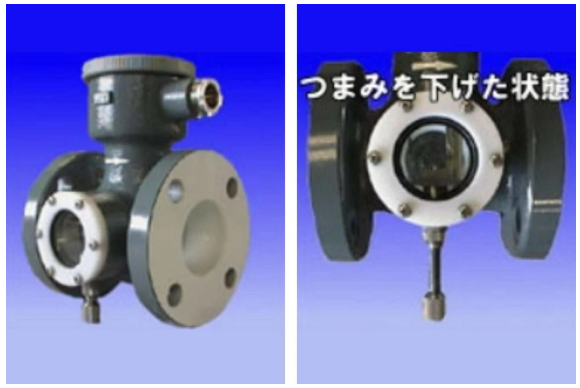

Wiper blade
(compatible with SP-R, SP-RN, SP-RD, SP-RX, and SP-REX models)
◎By moving the knob up and down, stubborn limescale and deposits can be easily removed.
◎It is compatible with existing flow relays and can be easily installed.
◎The internal seal uses wear-resistant O-rings and gaskets to prevent leaks and is designed to withstand high pressure.

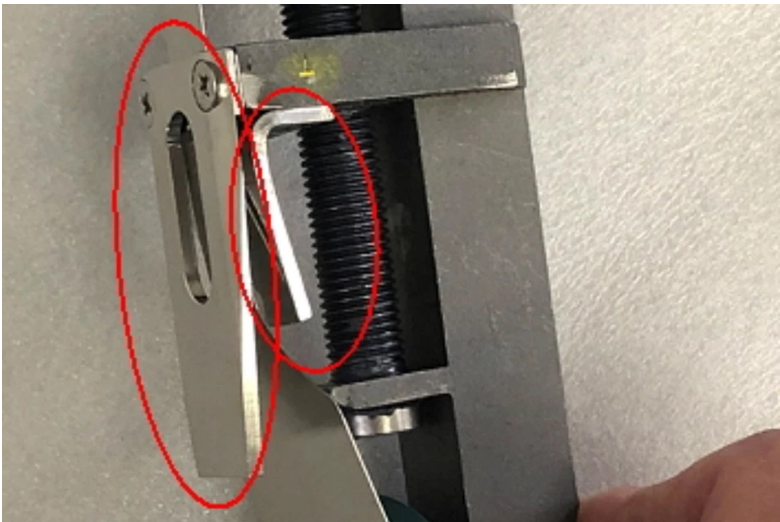

Leaf spring protection stopper
(compatible with SP-R, SP-RN, SP-RD, SP-RX, and SP-REX models)
◎This product is intended for installation in locations where excessive load is placed on the leaf spring, such as when the flow is not rectified or full, or when a straight pipe section cannot be secured before or after the flow relay.
◎It can also be installed on existing flow relays by replacing the internal mechanism with one that has a leaf spring protection stopper.
| Main material | Body: FC200 (15-100A) Body: STPG (125A and above) Body: SCS13, SCS14, SCS16, etc. (15-65A) Body: SUS304, SUS316, SUS316L, etc. (80A and above) Internal mechanism: SCS13, SCS14, SCS16, etc. |
|---|---|
| Connection port diameter | 15-800A |
| Flange standards | In addition to JIS10K (standard type), we also manufacture JIS5K, JIS20K, JIS30K, ANSI150lb, JPI150lb, and other types. |
| Decrease flow rate | We can manufacture devices with a flow rate of 5.0 l/min or less depending on the conditions, so please contact us for details. We also have NP-R and NP-RT models that can detect as low as 0.1 l/min (depending on the conditions). |
| Maximum pressure | 0.98MPa (standard type) |
| Temperature range | -10℃ to +60℃ (standard type) . +90℃ and +100℃ models are also available. |
| Recommended tightening torque for terminal screws | 0.9 N･m |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC60W AC200V 0.3A or less, AC100V 0.6A or less, DC200V 0.3A or less, DC100V 0.6A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | Body material for FC200: Munsell 7.5BG4/1.5 baked paint (standard type) Body material for SCS: Unpainted Painting is available upon request. |
