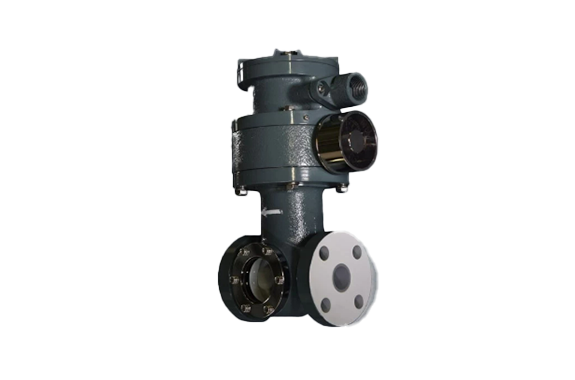

AROMANIKKI SP-RX Type Pressurized Pipelines

Manufacturer: AROMANIKKI Co., Ltd.
Model: SP-RX

Features

[Applicable Hazardous Atmospheres]
Applicable to most gases except hydrogen, acetylene, etc.
[Type Approval Number]
No. T52486
*The cable entry port uses a pressure-resistant packing system, but a conduit system SP-RXC type is also available.

Specification

Type Approval Number	No. T52486
Main material	Body (pipe connection section): FC200 (15-100A) Body (pipe connection section): STPG (125A and above) Body (pipe connection section): SCS13, SCS14, SCS16, etc. (15-65A) Body (pipe connection section): SUS304, SUS316, SUS316L, etc. (80A and above) Body (internal mechanism terminal box section): FC200 Internal mechanism: SUS304, SUS316, SUS316L, etc.
Connection port diameter	15-800A
Cable connection method	Pressure-resistant packing type (SP-RX type): Connection thread: G3/4 or G1/2, etc. Conduit type (SP-RXC type): G3/4 or G1/2, etc.
Flange standards	In addition to JIS10K (standard type), we also manufacture JIS5K, JIS20K, JIS30K, ANSI150lb, JPI150lb, and other types.
Decrease flow rate	We can manufacture machines with a flow rate of 5.0 l/min or less depending on the conditions, so please contact us for details .
Maximum pressure	0.98MPa (standard type)
Temperature range	-10℃ to +60℃ (standard type) . +90℃ and +100℃ models are also available.
Recommended tightening torque for terminal screws	1.4–2.0 N·m
Contact configuration	1ab(1c)
Contact capacitance (resistive load)	AC60VA, DC30W AC200V 0.3A or less, AC100V 0.6A or less , DC200V 0.15A or less, DC100V 0.3A or less, DC 50V 0.6A or less, DC 24V 0.6A or less
Paint color	[Body (piping connection section)] Body material FC200: Munsell 7.5BG4/1.5 baked finish (standard type) Body material SCS: Unpainted [Body (internal mechanism terminal box section)] Munsell 7.5BG4/1.5 baked finish (standard type) Painting is available upon request.

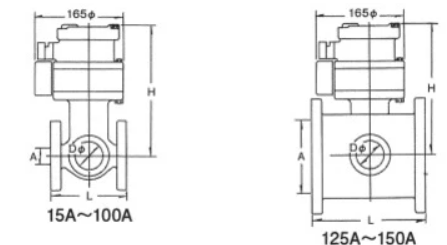

Nominal bore diameter (A)	Between surfaces (Lmm)	Height (Hmm)	Window (Dmm)	Weight (kg)
15	140	248	50	13.7
20	140	248	50	14.3
25	140	248	50	14.7
32	140	248	50	15.5
40	140	248	50	15.7
50	160	248	50	16.7
65	160	248	50	17.6
80	200	248	50	21.2
100	200	248	50	26.0
125	300	248	50	34.5
150	300	248	50	38.7
