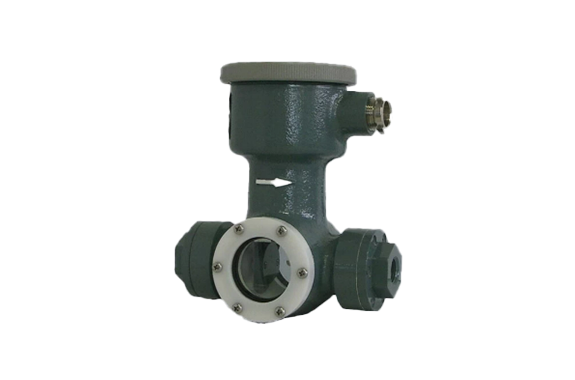

AROMANIKKI SP-R Type Screw-in Type
Manufacturer: AROMANIKKI Co., Ltd.
Model: SP-R Type
Features
[Connection Port Sizes]
・Rc1/2 (15A) to Rc1 (25A)
・NPT3/8 (10A) to NPT1 (25A)
・G1/2 (15A) to G1 (25A)
*Maximum operating pressure is up to 0.98 MPa.
*The threaded part is made of SS400. (The flow relay body is made of FC200.)

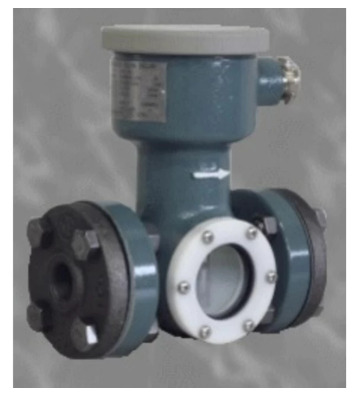

The SP-R type can also be fitted with a threaded flange.
| Main material | Body: FC200, SCS13, SCS14, SCS16, etc. Threaded section: SS400, SUS304, SUS316, SUS316L, etc. Internal mechanism: C3604, SCS13, SCS14, SCS16, etc. |
|---|---|
| Connection port diameter | Rc3/8(10A), Rc1/2(15A), Rc3/4(20A), Rc1(25A), etc. |
| Decrease flow rate | We can manufacture devices with a flow rate of 5.0 l/min or less depending on the conditions, so please contact us for details. We also have NP-R and NP-RT models that can detect as low as 0.1 l/min (depending on the conditions). |
| Maximum pressure | 0.98 MPa |
| Temperature range | -10℃ to +60℃ (standard type) . +90℃ and +100℃ models are also available. |
| Recommended tightening torque for terminal screws | 0.9 N･m |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC60W AC200V 0.3A or less, AC100V 0.6A or less, DC200V 0.3A or less, DC100V 0.6A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | Munsell 7.5BG4/1.5 baked finish (standard type) . Additional painting is available upon request. |

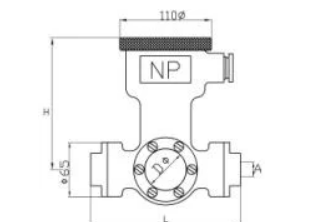

| Nominal bore diameter (A) | Between surfaces (Lmm) | Height (Hmm) | Window (Dmm) | Weight (kg) |
|---|---|---|---|---|
| 15 | 140 | 159 | 50 | 5.0 |
| 20 | 140 | 159 | 50 | 5.0 |
| twenty five | 140 | 159 | 50 | 5.0 |
