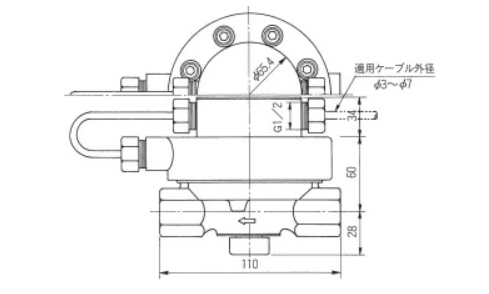

AROMANIKKI NP-R type With Terminal Box
Manufacturer: AROMANIKKI Co., Ltd.
Model: NP-R
Features

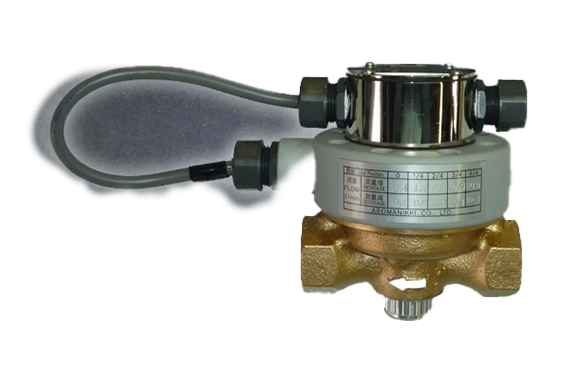

This is a type of NP-R flow relay with a terminal box mounted on top.
| Main material | Body: CAC403, SCS13, SCS14, etc. Terminal box: C3604BE Ni-plated Internal mechanism: C3604, SUS304, SUS316, etc. Switch enclosure: Rigid polyvinyl chloride |
|---|---|
| Connection port diameter | Rc3/8(10A), Rc1/2(15A), Rc3/4(20A), etc. |
| Conduit connection port diameter | G1/2 |
| Applicable cable outer diameter | φ3～φ7 |
| Decrease flow rate | 10A: Approx. 1.0 to 8.0 l/min 15A: Approx. 1.0 to 10.0 l/min 20A: Approx. 1.0 to 12.0 l/min Depending on the conditions, we can also manufacture pipes with flow rates less than 1.0 l/min, so please contact us for details. |
| maximum flow rate | 30.0 l/min |
| Maximum pressure | 0.98 MPa |
| Temperature range | -10℃ to +60℃ |
| Recommended tightening torque for terminal screws | 0.94～1.51N･m (Standard: 1.17N･m) |
| Contact configuration | 1ab(1c) |
| Contact capacitance (resistive load) | AC60VA, DC60W AC200V 0.3A or less, AC100V 0.6A or less, DC200V 0.3A or less, DC100V 0.6A or less, DC 50V 0.6A or less, DC 24V 0.6A or less |
| Paint color | Body material CAC403: Gold powder (standard type) Body material SCS: No paint |
Weight approx. 1.9kg
