Manufacturer: Daiichi Electronics Co., Ltd.

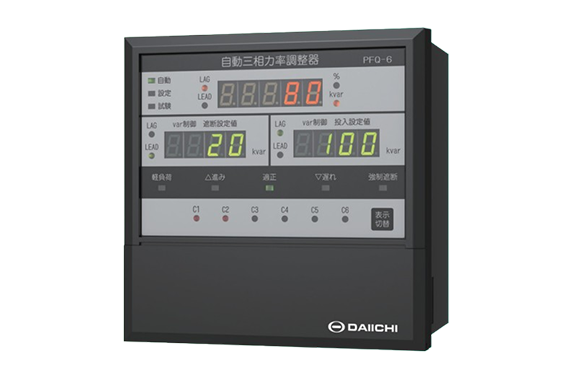

Model: PFQ Series

Features

• Small and lightweight (DIN 144 x 144).
• Depending on the number of capacitor controls, you can choose between 3 circuits (PFQ-3) and 6 circuits (PFQ-6).
• By combining two units, it is possible to control up to 12 circuits.
• It can be used for three-phase, three-wire unbalanced loads, balanced loads, and three-phase, four-wire circuits (switchable with the front switch).
• AC110V, AC110/√3V, AC220V (free input)
• There are two control methods to choose from: power factor control and reactive power control.
• The light load interruption function prevents the power factor from leading too much under light load.
• The forced shutoff function allows the capacitor to be shut off by an external signal.

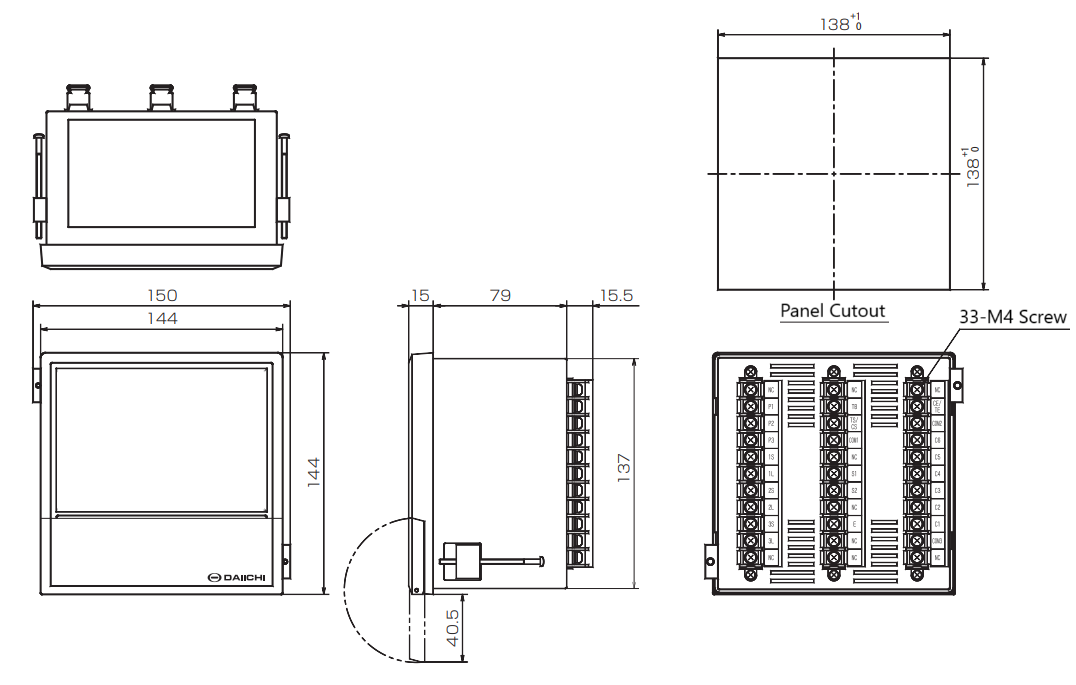

Outline Dimensional Drawing
