Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ARE-300N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

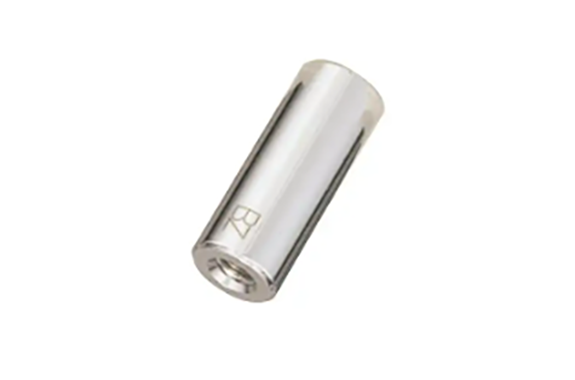

*The body displays the BZ laser mark for identification.

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ARE-304N	Fully threaded
	4.5	ARE-304.5N
	5	ARE-305N
	5.5	ARE-305.5N
	6	ARE-306N
	6.5	ARE-306.5N
	7	ARE-307N
	7.5	ARE-307.5N
	8	ARE-308N
	8.5	ARE-308.5N
	9	ARE-309N
	9.5	ARE-309.5N
	10	ARE-310N
	11	ARE-311N
	12	ARE-312N
	12.5	ARE-312.5N
	13	ARE-313N
	14	ARE-314N
	15	ARE-315N
	16	ARE-316N	6
	16.5	ARE-316.5N	6
	17	ARE-317N	6
	17.5	ARE-317.5N	6
	18	ARE-318N	6
	19	ARE-319N	6
	20	ARE-320N	6
	twenty one	ARE-321N	6
	twenty two	ARE-322N	6
	twenty three	ARE-323N	6
	twenty four	ARE-324N	6
	twenty five	ARE-325N	6
	26	ARE-326N	6
	27	ARE-327N	6
	28	ARE-328N	6
	29	ARE-329N	6
	30	ARE-330N	6
	35	ARE-335N	6
	40	ARE-340N	6
	45	ARE-345N	6
	50	ARE-350N	6
	55	ARE-355N	6
	60	ARE-360N	6
