Manufacturer: Hirosugi Instruments Co., Ltd.

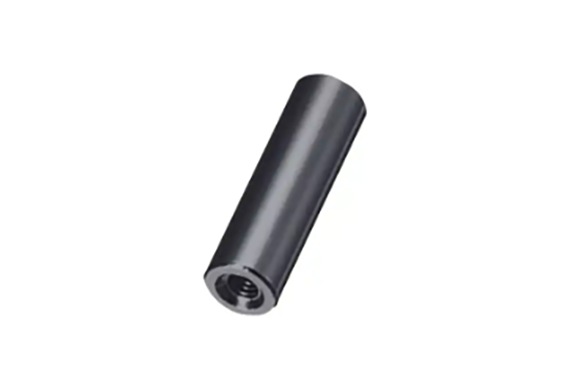

Model: ARL-300BE

Specification

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ARL-304BE	Fully threaded
	4.5	ARL-304.5BE
	5	ARL-305BE
	5.5	ARL-305.5BE
	6	ARL-306BE
	6.5	ARL-306.5BE
	7	ARL-307BE
	7.5	ARL-307.5BE
	8	ARL-308BE
	8.5	ARL-308.5BE
	9	ARL-309BE
	9.5	ARL-309.5BE
	10	ARL-310BE
	11	ARL-311BE
	12	ARL-312BE
	12.5	ARL-312.5BE
	13	ARL-313BE
	14	ARL-314BE
	15	ARL-315BE
	16	ARL-316BE	6
	16.5	ARL-316.5BE	6
	17	ARL-317BE	6
	17.5	ARL-317.5BE	6
	18	ARL-318BE	6
	19	ARL-319BE	6
	20	ARL-320BE	6
	twenty one	ARL-321BE	6
	twenty two	ARL-322BE	6
	twenty three	ARL-323BE	6
	twenty four	ARL-324BE	6
	twenty five	ARL-325BE	6
	26	ARL-326BE	6
	27	ARL-327BE	6
	28	ARL-328BE	6
	29	ARL-329BE	6
	30	ARL-330BE	6
	35	ARL-335BE	6
	40	ARL-340BE	6
	45	ARL-345BE	6
	50	ARL-350BE	6
	55	ARL-355BE	6
	60	ARL-360BE	6
