Manufacturer: Hirosugi Instruments Co., Ltd.

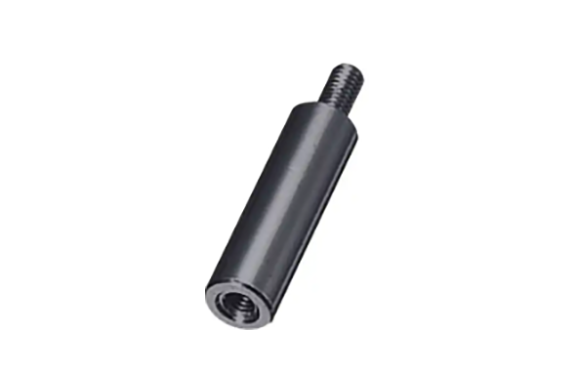

Model: BRL-300BE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Black anodized aluminum (BAL)

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BRL-304BE	2.5
	4.5	BRL-304.5BE	2.5
	5	BRL-305BE	3.5
	5.5	BRL-305.5BE	3.5
	6	BRL-306BE	4
	6.5	BRL-306.5BE	4
	7	BRL-307BE	5
	7.5	BRL-307.5BE	5
	8	BRL-308BE	6
	8.5	BRL-308.5BE	6
	9	BRL-309BE	6
	9.5	BRL-309.5BE	6
	10	BRL-310BE	6
	11	BRL-311BE	6
	12	BRL-312BE	6
	12.5	BRL-312.5BE	6
	13	BRL-313BE	6
	14	BRL-314BE	6
	15	BRL-315BE	6
	16	BRL-316BE	6
	16.5	BRL-316.5BE	6
	17	BRL-317BE	6
	17.5	BRL-317.5BE	6
	18	BRL-318BE	6
	19	BRL-319BE	6
	20	BRL-320BE	6
	21	BRL-321BE	6
	22	BRL-322BE	6
	23	BRL-323BE	6
	24	BRL-324BE	6
	25	BRL-325BE	6
	26	BRL-326BE	6
	27	BRL-327BE	6
	28	BRL-328BE	6
	29	BRL-329BE	6
	30	BRL-330BE	6
	35	BRL-335BE	6
	40	BRL-340BE	6
	45	BRL-345BE	6
	50	BRL-350BE	6
	55	BRL-355BE	6
	60	BRL-360BE	6
