Miyakawa K Type Multi-axis Drill

Product Made in Japan
Manufacturer: Miyakawa
Model: K type

K type

type_k Features

  1. Lower body and intermediate body are processed with jig borer, high precision, excellent in rigidity.
  2. It is a safety type of dustproof mechanism.
  3. Suitable for drilling machine / drill unit / tap unit, there is also a flange mounting type.
  4. You can also manufacture ears with brackets.
  5. For large diameter multiaxis, it can be used for Miyagawa’s unit MD type etc.
  6. If you prepare the head for each work, there is no need for centering, you can easily change the head if you attach a quick change mechanism.
  7. The transmission mechanism of the main shaft gear, the intermediate gear, and the spindle gear is the same as the universal type S type and C type.
  8. The axis of rotation. They are completely fixed by bearings to each body.
  9. The bearings designed to fit the hole group position of the workpiece are precision grinding with a jig borer.
  10. Grease is adopted as a lubricating mechanism, but we will also manufacture an oil bath method on request.
  11. When attached to the turning correction device R type for radial drilling machine, it is easy to correct the turning of the hole position of the drill.
  12. You can increase or decrease cutting edges using the incremental axis.
 K type structure

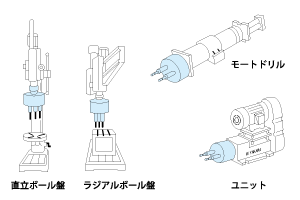

K type mounting machine

K type model introduction

Multi-axis Attachment Model of K Type Body outer diameter
size (φ mm)		 Pitch between 2 axes
(mm)		 Types and names of chucks
K-50 K50 100 8.5-55 C-3,C-4,C-6,C-10
K-60 K60 110 10-65 C-4,C-6,C-10
K-70 K70 130 10-73 C-4,C-6,C-10
K-90 K90 160 10-98 C-4,C-6,C-10,JT-1,JT-2,MT-1
K-120 K120 200 15-133 C-6,C-10,C-13,JT-1,JT-2,MT-1
K-140 K140 230 15-153 C-6,C-10,C-13,JT-1,JT-2,MT-1,MT-2
K-160 K160 250 15-173 C-6,C-10,C-13,MT-1,MT-2,MT-3
K-190 K190 280 15-203 C-6,C-10,C-13,MT-1,MT-2,MT-3
K-220 K220 320 15-233 C-6,C-10,C-13,MT-1,MT-2,MT-3
K-260 K260 360 31-268 C-10, C-13, MT-1, MT-2, MT-3
K-300 K300 400 31-308 C-10, C-13, MT-1, MT-2, MT-3
K-360 K360 460 36-360 C-13, MT-1, MT-2, MT-3
K-400 K400 500 36-400 C-10, C-13, MT-1, MT-2, MT-3

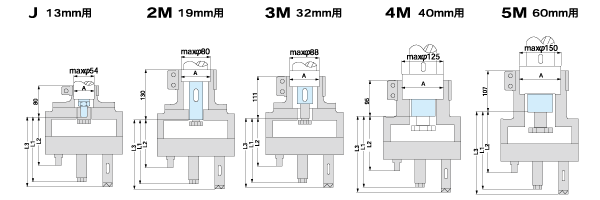

Dimensional drawing of K type

K type dimension table

ability L1 L2 L3
C-4 C-6 C-10 C-13 JT-1 JT-2 MT-1 MT-2 MT-3
J For 13 mm 144.5 140.5 156.5 196 126.5 152 219 – –
For 2M 19 mm 141.5 137.5 153.5 193 123.5 149 216 232 –
For 3M 32 mm 160.5 156.5 172.5 222 142.5 178 245 261 321
For 4M 40 mm 141.5 137.5 153.5 193 123.5 149 216 232 292
For 5M 60 mm 166.5 162.5 178.5 218 148.5 174 241 257 317

K type ears (with bracket)

K type with ears
  1. A fixed type K-type bracket in the axial direction is provided on both sides of the main body, making it ideal for keeping the forward movement accuracy in the horizontal direction as well as the vertical type.
  2. The bracket is attached to all types of K type.
  3. Especially at our company, the bracket and the guide bar are adopted thickly to keep rigidity and accuracy.
 Explanation with ears

Fixed type K with ears (with bracket)

Dimension table

Model Dimensions (mm) Ear size
φD S φG
K-50 with ear 100 140 20
K-60 with ears 110 150 20
K-70 with ears 130 170 20
K-90 with ears 160 210 twenty five
K-120 With ears 200 260 twenty five Ear Photo
K-140 with ears 230 290 twenty five
K-160 with ears 250 320 30
K-190 With ears 280 350 30
K-220 With ears 320 390 35
K-260 With ears 360 430 35
With K-300 ear 400 470 35
K-360 With ears 460 540 40
With K-400 ear 500 580 40

Fixed type multi-axis attachment exchange type

KE type KE type (One hand clamp system)

Simply rotate the lever slightly to perform positioning and clamping simultaneously
KK type KK type (catching grip type)

Tighten with positioning pin with 2 or 4 combination catching grips.
KK type toggle clamp KK type (toggle clamp type)

Especially when there is weight, if the processing position and posture are horizontal type, draw a multi-axis attachment with a powerful toggle clamp to prevent the drooping.

K-type performance official

Type Outer dimension of multi-axis
head (φ mm)		 Types and names ofchucks Maximum shaft center range (mm) that can be drilled Minimum axial center range (mm) that
can be drilled		 Drilling
capacityper axis
(S45C)
(mm)		 Screw standing
capacityper axis
(S45C)
(M)		 Maximum
grip diameter of chuck
(mm)		 Weight with
4 axes
(kg)
K-50 100 C-3 55 8.5 2 2 3 3.7
C-4 10 2 2 4 3.8
C-6 15 4 4 6 4.0
C-10 23 6 6 10 4.5
K-60 110 C-4 65 10 2 2 4 4.3
C-6 15 4 4 6 4.5
C-10 60 23 6 6 10 5.5
K-70 130 C-4 73 10 3 3 4 5.3
C-6 15 5 5 6 5.4
C-10 68 23 7 6 10 6.4
MT-1 31 8 6 14 12.4
K-90 160 C-4 98 10 3 3 4 8.1
C-6 15 5 5 6 8.2
C-10 93 23 8 6 10 9.2
JT-1 37.5 5 5 6.5 8.4
JT-2 45.5 8 6 10 9.2
MT-1 31 10 8 14 13.9
K-120 200 C-6 133 15 5 5 6 12.2
C-10 128 23 8 6 10 13.2
C-13 115 36 1 8 13 14.6
JT-1 128 37.5 6 5 6.5 12.4
JT-2 45.5 8 6 10 13.2
MT-1 115 36 13 12 14 19.0
K-140 230 C-6 153 15 5 5 6 16.0
C-10 148 23 8 6 10 17.2
C-13 140 36 10 10 13 19.6
JT-1 140 37.5 6 5 6.5 16.2
JT-2 45.5 8 6 10 17.0
MT-1 140 36 13 12 14 21.7
MT-2 130 48 22 16 23 26.1
K-160 250 C-6 173 15 5 5 6 18.7
C-10 168 23 8 6 10 19.7
C-13 160 36 10 10 13 21.1
MT-1 13 12 14 23.5
MT-2 150 48 22 16 23 29.8
MT-3 140 56 30 22 32 32.0
K-190 280 C-6 203 15 5 5 6 22.5
C-10 198 23 8 6 10 23.5
C-13 190 36 10 10 13 24.9
MT-1 13 12 14 32.1
MT-2 180 48 22 16 23 34.8
MT-3 170 56 30 22 32 36.5
K-220 320 C-6 233 15 5 5 6 24.6
C-10 228 23 8 6 10 29.3
C-13 220 36 10 10 13 35.1
MT-1 13 12 14 36.7
MT-2 210 48 22 16 23 38.7
MT-3 200 56 30 22 32 43.8
K-260 360 C-10 268 23 8 6 10 27.5
C-13 260 36 10 10 13 37.3
MT-1 13 12 14 40.0
MT-2 250 48 22 16 23 43.3
MT-3 240 56 30 22 32 52.8
K-300 400 C-10 308 23 8 6 10 32.8
C-13 300 36 10 10 13 46.6
MT-1 13 12 14 47.2
MT-2 290 48 22 16 23 50.7
MT-3 280 56 30 22 32 61.9
K-360 460 C-13 360 36 10 10 13 58.6
MT-1 13 12 14 59.5
MT-2 350 48 22 16 23 63.4
MT-3 340 56 30 22 32 77.4
K-400 500 C-13 400 36 10 10 13 68.2
MT-1 13 12 14 68.9
MT-2 390 48 22 16 23 73.3
MT-3 380 56 30 22 32 89.9
