Miyakawa MD Motor for Multi-axis Drill

Product Made in Japan
Manufacturer: Miyakawa
Model: MD15・25, MD-45・55, MD20, MD40, MD50, MD60

MD type overview

Features

  1. Each model number corresponds to the drilling ability.
  2. Motor output can be changed by number of shafts and drill diameter.
  3. When the spindle rotation speed is 300 min – 1 or less, use the reducer motor by special order.
  4. When the diameter of the transmission pulley becomes larger, the pulley cover protrudes from the lower surface of the main body, so please use the proper liner on the bottom of the main unit.
  5. In the case of ordering, please specify separately for vertical and horizontal mounting.



Combination of MD type unit and multi-axis attachment

MD20 type → MD model description MD 20 + K 90
MD-20
type_k Multi-axis attachment K type and
MD-20 type
Multi-axis attachment type K



Combination of MD type unit and multi-axis attachment

G type K type MD20 type
G type → K type → MD type



MD unit + multi-axis attachment + MF type feed unit

MD 20 + MF 850 ​​+ K 90



MD15・25 type

MD15

Performance specification

Spindle taper JT No.3
electric motor 4P 0.75kw(4P1.5kw)
Main shaft rotation speed
min – 1
50Hz 420,530,700,920,1170,1500,1740
60Hz 500,640,840,1100,1400,1800,2100
Weight (multiple axes are not included) About 60kg (about 69kg)
※ () inside indicates MD-25 type



Geometry

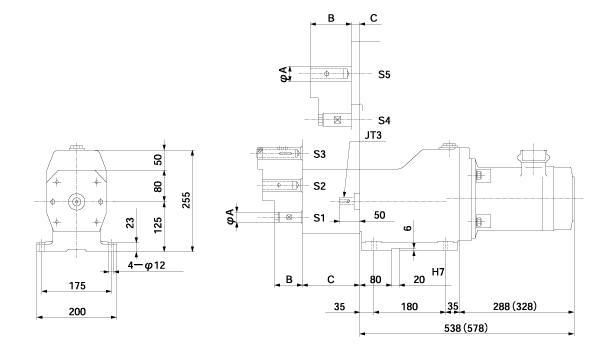

MD15 type dimension drawing

Single axis specification S No. φA B C
C-13 4 φ28 70 20
BILZ20 5 f32 80 20
KKS22 5 f36 90 20
Multi-axis specification S No. φA B C
C-4 1 φ9.5 47 141.5
C-6 1 f14 43 141.5
C-10 1 φ21 59 141.5
BILZ16 2 φ25 84 155
16×1 3 φ25 94 155



MD-45・55 type

MD45 type

Performance specification

Spindle taper φ25 key
electric motor 4P 2.2kw(4P3.7kw)
Main shaft rotation speed
min – 1
50Hz 340,440,550,620,790,1000,1250
60Hz 400,520,670,740,950,1200,1500
Weight (multiple axes are not included) About 120kg (about 140kg)
※ () inside is MD-55 type



Geometry

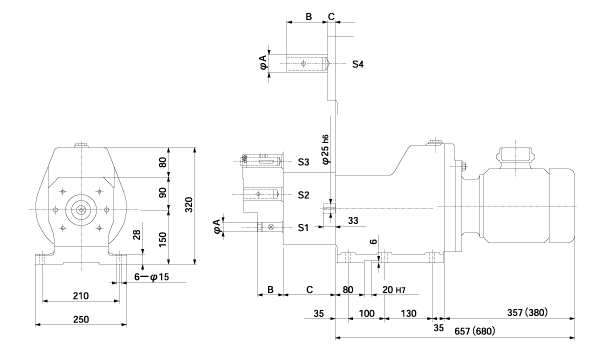

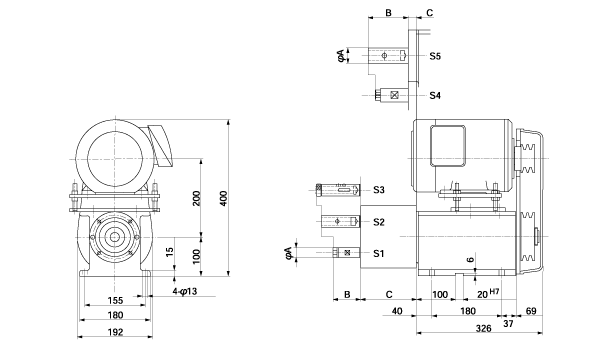

MD45 type dimension drawing

Single axis specification S No. φA B C
BILZ28 4 φ40 90 20
BILZ32 4 φ45 110 20
KKS32 4 φ46 110 20
Multi-axis specification S No. φA B C
C-6 1 f14 43 141.5
C-10 1 φ21 59 141.5
C-13 1 φ28 71 169 (L axis 188)
BILZ20 2 f32 91 169 (L axis 188)
20×1 3 φ29 94 169 (L axis 188)

MD20 type

MD20 type

Performance specification

Spindle taper MT3
electric motor 4P 1.5kw
Main shaft rotation speed
min – 1
500-2000
Weight (multiple axes are not included) About 55kg



Geometry

MD45 type dimension drawing

Single axis specification S No. φA B C
C-13 4 φ28 70 20
BILZ20 5 f32 80 20
KKS22 5 f36 90 20

Multi-axis 様S No. φA B C C-4 1 φ9.5 47 141.5 C-6 1 φ14 43 141.5 C-10 1 φ21 59 141.5 BILZ16 2 φ25 84 155 16×1 3 φ25 94 155

MD40 type

MD40 type

Performance specification

Spindle taper MT3
electric motor 4P 2.2kw
Main shaft rotation speed
min – 1
500-2000
Weight (multiple axes are not included) About 80kg



Geometry

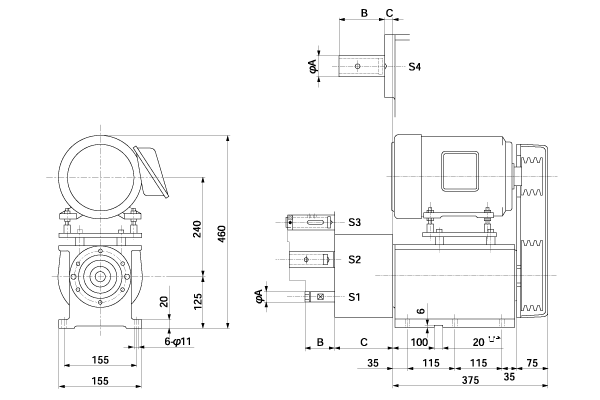

MD 40 Dimensional drawing

Single axis specification S No. φA B C
BILZ28 4 φ40 90 20
BIL32 4 φ45 110 20
KKS32 5 φ46 110 20
Multi-axis specification S No. φA B C
C-6 1 f14 43 141.5
C-10 1 φ21 59 141.5
C-13 1 φ28 71 169 (L axis 188)
BILZ20 2 f32 91 169 (L axis 188)
20×1 3 φ29 94 169 (L axis 188)

MD50 type

MD50 type

Performance specification

Spindle taper MT4
electric motor 4P 3.7kw
Main shaft rotation speed
min – 1
400-1000
Weight (multiple axes are not included) About 117kg



Geometry

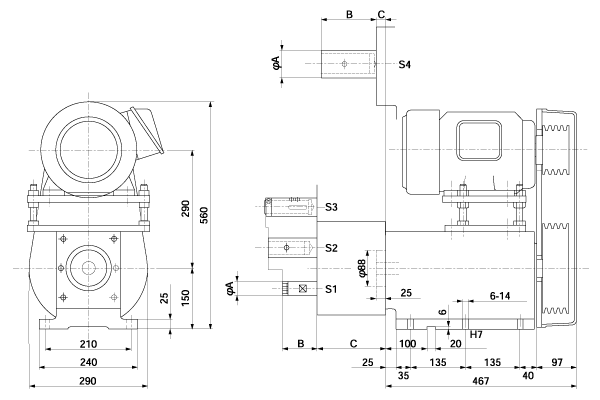

MD50 type

Single axis specification S No. φA B C
KKS35 4 f52 110 25
BILZ36 4 φ50 110 25
BILZ48 4 f67 135 25
Multi-axis specification S No. φA B C
C-13 1 φ28 71 169 (L axis 188)
BILZ28 2 φ40 101 173 (L axis 192)
26×2 3 φ37 106 173 (L axis 192)

MD60 type

MD60 type

Performance specification

Spindle taper 20 Width Clutch
electric motor 6P 5.5kw
Main shaft rotation speed
min – 1
300-800
Weight (multiple axes are not included) About 265kg



Geometry

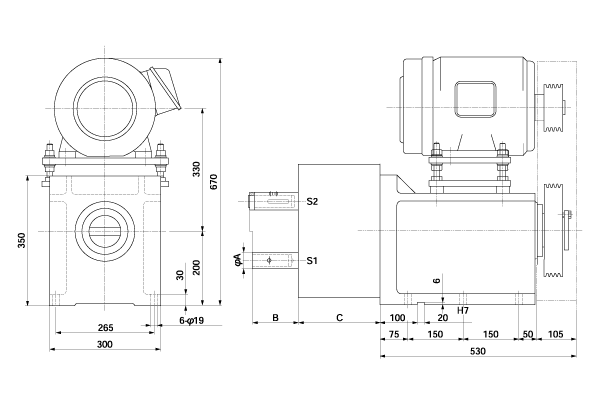

MD60 type dimensions

Multi-axis specification S No. φA B C
BILZ32 1 φ45 123 220 (L axis 260)
KKS35 1 f52 123 220 (L axis 260)
26×2 2 φ37 106 173 (L axis 192)
32×3 2 f47 131 220 (L axis 260)
