Mizumoto Machine Mfg. Co.

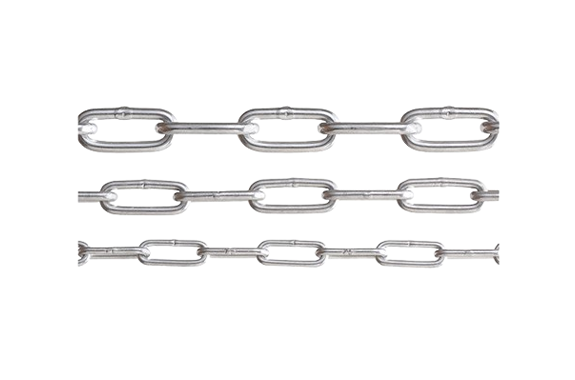

Mizumoto AL Series Strong Aluminum Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: AL Series
Features
- It is about 1/3 of the mass of iron and stainless steel, and is about 10 times stronger than plastic chains.
- It is used for interior (lobby, etc.) and outdoor (exterior, etc.) decoration, partitions, etc.
Specifications
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) (Calculated) | Working Load (Reference) | Breaking Load (Reference) | ||
| (kgf) | (kN) | (kgf) | (kN) | |||||
| AL-3 | 3 | 24 | 5 | 0.049 | 25 | 0.25 | 50 | 0.49 |
| AL-3.5 | 3.5 | 27.5 | 6 | 0.067 | 40 | 0.39 | 80 | 0.78 |
| AL-4 | 4 | 30 | 6.5 | 0.09 | 60 | 0.59 | 120 | 1.18 |
| AL-5 | 5 | 33 | 8.5 | 0.14 | 140 | 1.37 | 280 | 2.74 |
| AL-6 | 6 | 36 | 10 | 0.22 | 180 | 1.76 | 360 | 3.53 |
| AL-7 | 7 | 37 | 11 | 0.28 | 220 | 2.16 | 440 | 4.31 |
| AL-8 | 8 | 38 | 12 | 0.38 | 280 | 2.74 | 560 | 5.49 |
| Material | Chemical Composition (%) | |||||||
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Al | |
| A5052 | ≤0.25 | ≤0.40 | ≤0.10 | ≤0.10 | 2.2～2.8 | 0.15～0.35 | ≤0.10 | Balance |
Material: Aluminum light alloy
*Fabric (without anodizing) Polishing only
*The fixed size is 30m per piece.
*Please also inquire about chains with strength test.
Dimensions (mm)
