Mizumoto Machine Mfg. Co.

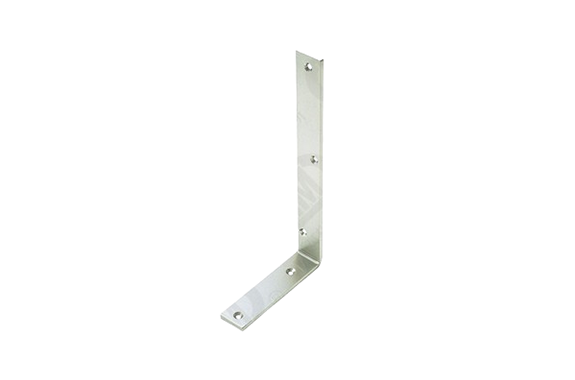

Mizumoto KLD Series Shelf Receiver
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KLD Series
Features
- Please use the screws on the countersunk head.
- The seat control is attached to both sides.
- It can be used both inward and outward.
- For making shelves, as reinforcing hardware for corners.
Specifications
| Item Number | TYPE | L1 (Length 1) | L2 (Length 2) | W (Width) | T | d | A | B | C | D | E | F | G | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KLD-60 | ① | 120 | 60 | – | 5 | 5 | 30 | 80 | – | 16 | 35 | – | – | 187 |
| KLD-75 | ② | 150 | 75 | – | 5 | 5 | 30 | 55 | 55 | 7.5 | 28 | 36 | – | 234 |
| KLD-100 | ② | 200 | 100 | 30 | 5 | 5 | 33.5 | 77.5 | 77.5 | 7.5 | 24 | 65 | – | 312 |
| KLD-125 | ② | 250 | 125 | – | 5 | 5 | 34.5 | 101.5 | 101.5 | 7.5 | 34 | 80 | – | 390 |
| KLD-150 | ③ | 300 | 150 | – | 5 | 5 | 36 | 125 | 125 | 7.5 | 29 | 55 | 55 | 468 |
*With double-sided sitting (can be used both inward and outward.)
*Hairline finish

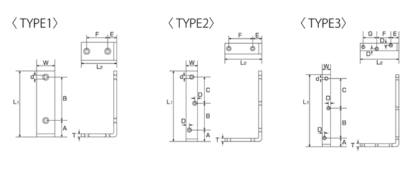

Dimensions (mm)
