- Cast stainless steel made body (SCS14A)
- Three times higher in durability and scale-resistance than our conventional models
- Gasket made of PTFE offers higher airtightness
- Coil has 2 types for 10-25A (red) and for 32-50A (black)
Japan, Yoshitake

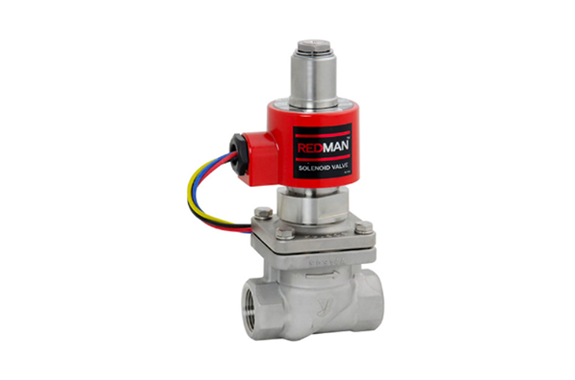

YOSHITAKE DP-100-C Solenoid Valve
Made in Japan
Manufacturer: Yoshitake
Model: DP-100-C
Specifications
| Features | AC, normally open | |
|---|---|---|
| Type | Piston type solenoid valve | |
| Specifications | Product type | Solenoid Valve_Piston |
| Nominal size | 10A (3/8″) – 50A (2″) | |
| Application | Steam, air, water, N2 gas, CO2 gas (dry), Ar gas, oil (20cSt or less) | |
| End connection | JIS Rc screwed | |
| Max. pressure | 1 MPa | |
| Working pressure | 0 – 1 MPa (not usable under vacuum) | |
| Max. temperature | 180 degree(C) (5 – 180 degree(C) no freeze condition) | |
| Min. differential pressure | 0 MPa (0.03 MPa or more is required when installed with the coil sideways) | |
| Ambient temperature | Max. 50 degree(C) (no freeze condition) | |
| Rated voltage | AC 110/220V selective type – 50/60Hz common | |
| Valve seat leakage | 50 mL/min under standard conditions (at air pressure of 0.6 MPa) | |
| Installation posture | Horizontal or vertical (the coil has to be within 90 degrees from upward position) | |
| Protection class | IP64 | |
| Material | Body | Stainless steel |
| Valve | Stainless steel | |
| Disc | PTFE | |
| Gasket | PTFE | |
Dimensions and Weights
| Size | L (mm) | H (mm) | Weight (kg) | Cv value |
|---|---|---|---|---|
| 10A(3/8) | 70 | 174 | 1.7 | 3.0 |
| 15A(1/2) | 70 | 174 | 1.7 | 4.5 |
| 20A(3/4) | 80 | 177 | 1.8 | 7.5 |
| 25A(1) | 95 | 181 | 2.2 | 12.0 |
| 32A(1 1/4) | 110 | 218 | 3.4 | 17.7 |
| 40A(1 1/2) | 120 | 225 | 4.3 | 25.0 |
| 50A(2) | 140 | 233 | 5.9 | 33.6 |
Dimensional drawing
