Japan, LOBTEX
LOBTEX UWP-DNA Hybrid Anguirus (with machine screw removing function)
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: UWP-DNA : UWP175DNA, UWP200DNA, UWP240DNA
Further evolution from the standard Anguirus series
Pursuing ease of use and advanced functions
Available in three sizes, exceeding the scope of conventional pump pliers
Lightweight and compact (Load applied to the waist is considerably reduced.)
The jaw opening is wide, although the tool is compact.
The tri-grip teeth at the tip securely grip thin plate.
The offset shape is easy to use.
For removing rusted screws and head-crushed screws
Use/Application
For piping work (water service, gas and air piping, etc.), electrical work, and maintenance of automobiles, facilities and water-related equipment
Features
Functions
[1] Size variations
Available in three sizes, exceeding the scope of conventional pump pliers (175, 200, 240)
[2] Weight reduction
37% weight reduction
from conventional models (in comparison with size 250).
Lightweight and compact body considerably reduces load applied to the waist.
[3] Asymmetrical tooth grip, and wide jaw opening
Three-point support (*2):
The jaw opening is wide, although the tool is compact.
The jaw can securely grip the target object.
The opening is 35% wider than that of conventional models (in comparison with size 250).
Size 200 and size 175 are applicable to C51 and C39 thin steel conduit tubes, respectively.
[4] Tri-grip tooth
Three-point support (*2) at the tip can securely grip thin plate.
[5] Offset shape
With the offset shape, this tool is useful for accessing recessed parts,which is difficult to handle with conventional pliers.
[6] Neji-Anguirus
Machine screw removing function (*1):
Useful for removing rusted screws and head-crushed screws
[7] Other functions
First model equipped with steel wire cutter (simplified cutter) *3 among our pump plier series.
The soft grip fits the hand.
Equipped with a slotted screwdriver and wire insertion hole for fall prevention

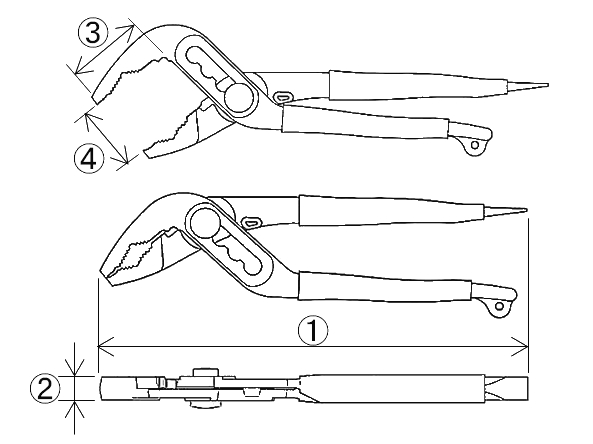

Specifications
.jpg)
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | Bolt, nut maximum dimension | The outside diameter of the pipe grabbed (A display) | Applicable screw | Material, Surface finishing | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UWP175DNA | 150g | 170mm | 9mm | 34mm | 0～33mm | M24（36ｍｍ） | φ39 | Screw headφ12 or less （Pan head：M2～M6､Truss head：M3～M5） | Black cation electrodeposition coating | open price | Applicable steel wire diameter： φ1.6 |
| UWP200DNA | 170g | 193mm | 9mm | 39mm | 0～45mm | M30（46ｍｍ） | φ51 | Screw headφ12 or less （Pan head：M2～M6､Truss head：M3～M5） | Black cation electrodeposition coating | open price | Applicable steel wire diameter： φ2.0 |
| UWP240DNA | 220g | 235mm | 9mm | 44mm | 0～50mm | M33（50ｍｍ） | φ55 | Screw headφ12 or less （Pan head：M2～M6､Truss head：M3～M5） | Black cation electrodeposition coating | open price | Applicable steel wire diameter： φ2.6 |
IMPORTANT SAFETY INSTRUCTIONS1 Do not use this tool for a screw whose size is not suited. Do not use this tool for quenched hard cap screws, drill screws, etc., Otherwise, the grip teeth at the tip of the tool may be damaged.
2 The position of 3-point support changes or the 3-point support is disabled depending on the shape and size of a target object.
3 Steel wire indicates soft steel material such as wire. (Soft steel: Hardness: 80 HRB or less, Tensile strength: 490 N/mm2 or less [Mechanical property]) Do not cut steel wire exceeding the cutting capacity of the tool.
This tool provides a simplified cutting function, but its cutting performance is not as high as that of nippers and mini cutters designed specifically for cutting. This tool cannot cut extremely thin wire. During cutting work, pay attention to the direction of swarf.
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
