Manufacturer: Thomas Scientific Instruments Co., Ltd.

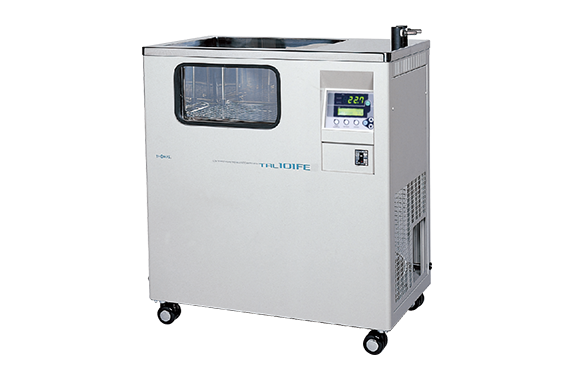

Model: TRL-101FE

This product offers enhanced cooling capacity with the same tank size and functions as the versatile TRL-101F.
It can cool down to -15°C.
We also offer the TRL-101FEP, which is equipped with a circulation pump and can cool down to -10°C.

External dimensions	W650×D380×H715mm
Internal dimensions of the tank	W400 x D300 x H300 (Effective Height 245) mm
Effective dimensions inside the tank	W365×D260×H245mm Window dimensions: W262×H160mm
Capacity (L)	32
Temperature range (°C)	-15℃ 60℃
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
timer	Auto-start timer, auto-stop timer (maximum settable time: 99 hours 59 minutes)
heater	Cartridge heater 1kW
Refrigeration unit	Air-cooled 250W HFC-134a
cooling capacity	500W (430kcal/h)
cooling capacity environment	Water temperature +20℃ 50Hz
Agitator	Jet agitation type magnetic pump
safety equipment	Earth leakage circuit breaker, self-diagnostic function (HC: overheating prevention, LC: low temperature prevention, low water level detection, refrigerator protection circuit, temperature sensor malfunction, refrigerator pressure malfunction, incorrect setting prevention)
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish Front observation window
accessories	One set of stainless steel height-adjustable shelves.
power supply	AC100V 14A 50/60Hz, 2m cord with plug
others	Drain opening outer diameter Φ12mm
weight	Approximately 52kg
